3D Panel Batten 6

Description

Seamlessly joined, our 3D Wall Panels offer both an intriguing design element and functional acoustic enhancement for straight or curved walls. These narrow panels boast a small pattern repeat, facilitating easy adjustment for wall-to-wall fitting without the need for custom drawings.

Our Batten design is inspired by the timeless appeal of the board and batten pattern. Designed to bring a touch of architectural elegance and visual interest to your space. Featuring alternating wide boards and vertical battens, this captivating pattern creates a dynamic and textured surface. Its classic yet versatile design effortlessly adds a sense of depth and character to any project.

Also Available in Batten 2, Batten 4, and Peaks design

Our Peaks design resembles the peaks of mountains. This panel features a series of angular protrusions arranged in a symmetrical pattern, creating a dynamic and textured surface. Its narrow profile and intricate design make it suitable for a variety of applications, from modern offices and conference rooms to contemporary residential settings.

Not only does the Peaks Panel contribute to the aesthetics of a space, but it also serves a functional purpose by enhancing sound absorption and cancelling out soundwaves. Its sculptural form adds depth and dimension to flat surfaces, transforming them into visually captivating focal points.

Note: Not suitable as a free-standing product.

Dimensions

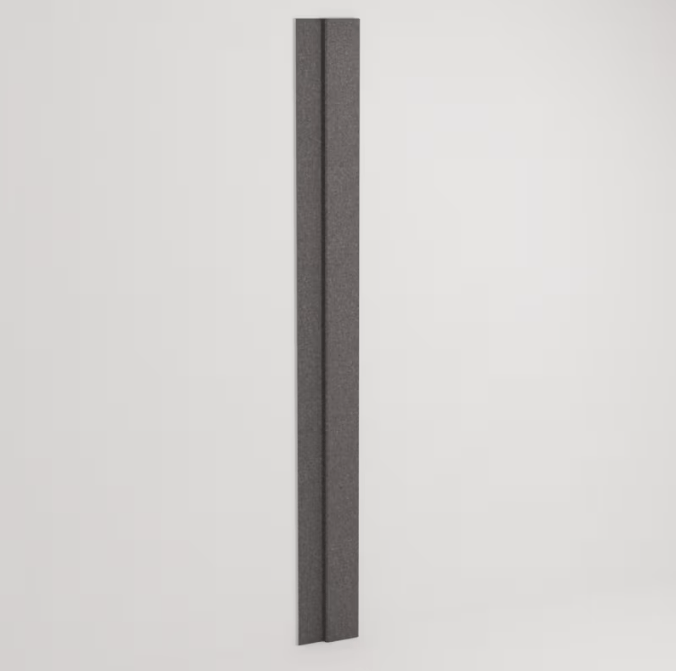

• Batten 6:
• 3 strips / set, 2.5m² (27SF)
• 305mm (12”) w x 2745mm (108.1”) h x 37mm (1.5”) d / strip
• Please note: Visible width 292mm (11.5")

Composition

• Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester
• 12mm (1/2") - Density 2.4 kg /m² (0.5 lb/ft²)

Sustainability

• Zintra is made from 100% recyclable materials:
• 60% post-consumer recycled content from PET bottles
• 35% pre-consumer recycled content from PET chips
• 5% polylactic acid (PLA)

Fire Rating

• ASTM-E84 – Class A classification
• AS ISO 9705 – 2003 – Group 1 classification
• EN-13501 – B-s2-d0 classification

Warranty

Visit FAQ for more details.

Assembly & Delivery

• Ships Flat Packed. Refer Installation instructions.
• Recommended 2 People assembly

Go to the Technical Documents and download the Installation Guide for more details.

Supplied As

Batten 6 | 3 Strips (Set) 2.5m² (27SF)

Suggested Installation

Go to Technical Documents and download the Installation Guide for more details.

How to Specify

1. Select Design
2. Select Zintra Colour

Care Instructions

• Vacuum to remove dust.
• Dab Zintra with a damp clean cloth and mild solution of liquid detergent and warm water. Repeat using only clean water, then pat dry with a lint-free cloth.
• For difficult stains, use a solution of household bleach (10% bleach / 90% water). To remove the bleach, repeat using a clean, water-dampened cloth, then pat dry.
• Always test in an inconspicuous area first, and if you don't see the expected results, contact us.

Customisable

• Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester
• 12mm (1/2") - Density 2.4 kg /m² (0.5 lb/ft²)

Additional Comments

NRC 0.45
