Zintra Baffle Systems - Swell
Zintra Baffle Systems - Swell
Description
A modern solution for acoustic control, Zintra Baffles are a prefabricated, ceiling-mounted system. Showcasing Zintra’s flexible characteristics and offering superior acoustic control, Zintra Acoustic Baffles are an innovative replacement to traditional mineral fibre lay systems.

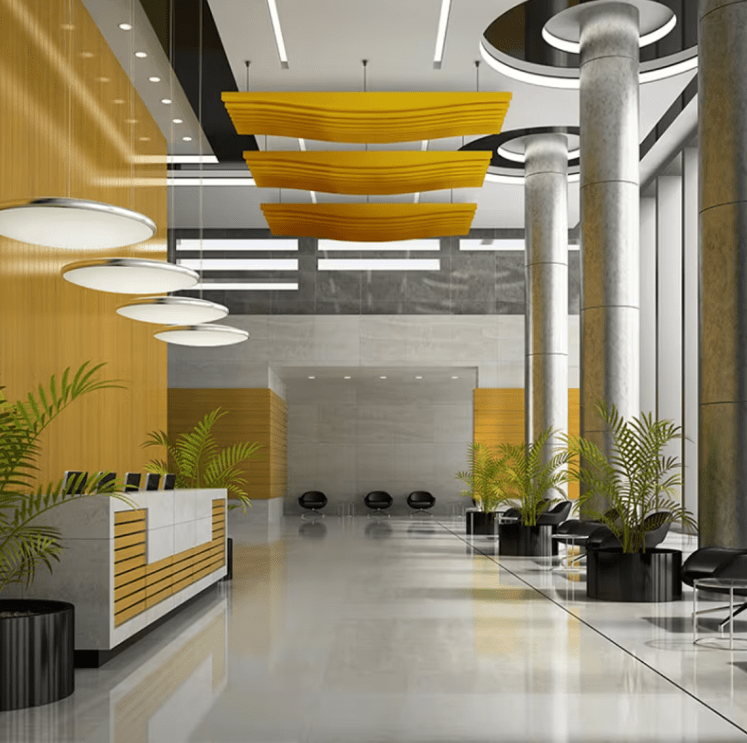

By exposing the ceiling, Zintra baffles create an open and airy atmosphere while efficiently mitigating noise levels.

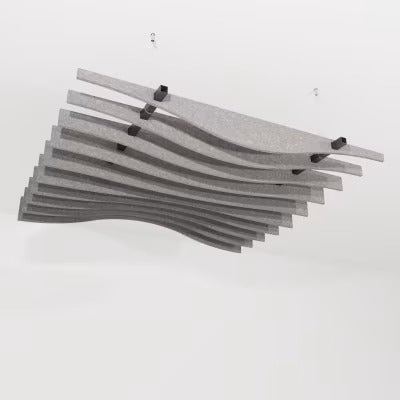

Swell
Captures the essence of a wave's fluid motion, evoking a sense of movement and energy.
Easy to assemble, easy to install, and available in a large array of designs, baffles are ideally suited to large noisy spaces in educational institutions, shopping centres, restaurants, and airports.
Available in 11 designs:
- Bolt
- Canyon
- Gorge
- Individual
- Louvre
- Quarter
- Ridge
- Square
- Swell
- V-Fold
- Wave
Combining a dynamic aesthetic appeal and acoustic performance, these systems are supplied ready to install with minimum fuss. A great advantage of the vertical blades is the increased surface area that is presented to the room, resulting in a greater absorption of sound compared to flat panels.
Zintra Baffles present a modern and budget-friendly solution for cultivating a tranquil and efficient workspace.
Choose from one of our 12 vibrant powder coat colors (additional charge).
Dimensions
Available in 2 sizes, Small Baffle and Large Baffle.
- Small: 1220mm (48") w x 1220mm (48") d
- Large: 1220mm (48") w x 2745mm (108") d
- Available in 120mm (4.7") or 240mm (9.5") high
Composition
Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester
12mm (1/2") - Density 2.4 kg /m² 0.5 lb/ft²
Sustainability
Zintra is made from 100% recyclable materials.
- 60% post-consumer recycled content from PET bottles.
- 35% pre-consumer recycled content from PET chips.
- 5% polylactic acid (PLA).
Fire Rating
- ASTM-E84 – Class A classification
- AS ISO 9705 – 2003 – Group 1 classification
- EN-13501 – B-s2-d0 classification
Warranty
Visit FAQ for more details.
Assembly & Delivery
- Ships Flat Packed.
- Assemble your Baffle System then suspend from the ceiling using hanging hardware supplied.
- Go to the Technical Documents and download the Installation Guide for more details.
Supplied As
Swell: 10 Blades
- 4 or 6 Adjustable Suspension Kit (ASK) | 2 or 3 x Aluminium Tube with Notches | 4 or 6 x Aluminium End Caps | 2 or 3 x 24mm (1") Zintra Connectors
How to Specify
- Select Design
- Select Size
- Select Zintra Colour
Care Instructions
- Vacuum to remove dust.
- Dab Zintra with a damp clean cloth and mild solution of liquid detergent and warm water. Repeat using only clean water, then pat dry with a lint-free cloth.
- For difficult stains, use a solution of household bleach (10% bleach / 90% water). To remove the bleach, repeat using a clean, water-dampened cloth, then pat dry.
- Always test in an inconspicuous area first, and if you don't see the expected results, contact us.
Customisable
Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester
12mm (1/2") - Density 2.4 kg /m² 0.5 lb/ft²
Additional Comments
- NRC Rating
- Without Air Gap: Up to 0.95
- With 24" (610mm) Air Gap: Up to 1.00
