Zintra Beams Open Rafter
Zintra Beams Open Rafter
Description
Large spaces require acoustic solutions that match their scale. The Zintra Beams collection addresses this need perfectly, offering substantial proportions that exude a sense of structure and architectural grandeur. Their modular design allows for a variety of configurations across a range of styles and sizes, with connectors for effortless customization to suit any space.
There are 5 different geometric designs available:
- Open Rafter
- Closed Rafter
- Rectangular
- Square
- Parallel Beams
Available in various sizes (please refer to the dimensions for design-specific details). For added acoustic comfort, optional coffer panels are available to suit open, closed, and square designs.

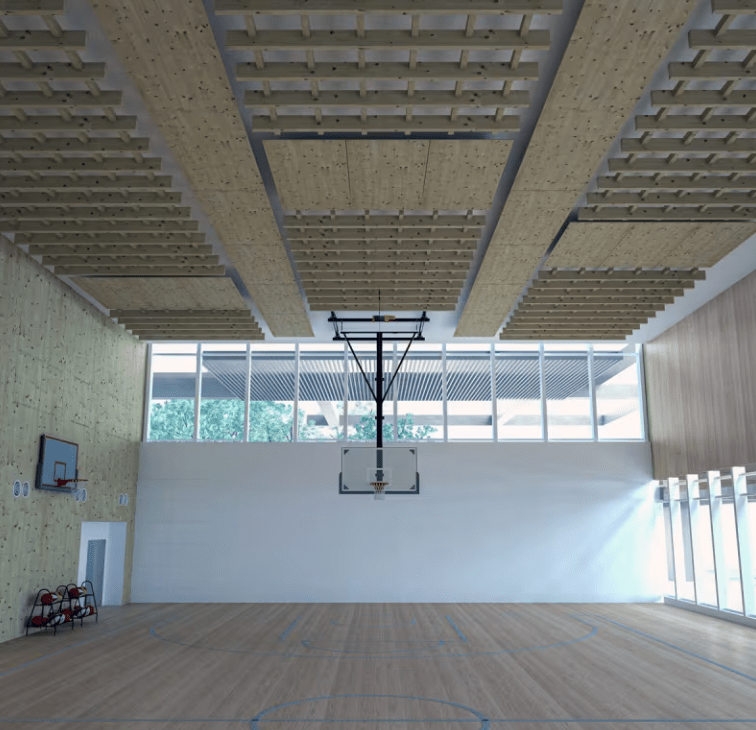

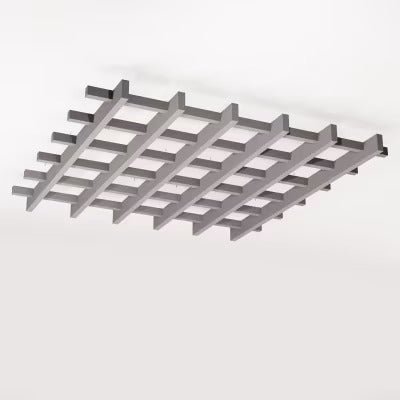

Open Rafter
A rustic and character-filled design, emphasizing its open-edge feature as the core of its modular structure. Available in five standard configurations, providing lightweight solutions tailored to various spaces. With a selection of 30 colours and realistic wood prints, it enhances architectural aesthetics. Specifically engineered for superior acoustics, optional coffer panels are available to further improve its NRC rating.
Engineered for superior sound absorption, Zintra Beams function as porous absorbers across the entire frequency range. This significantly enhances the NRC rating, up to a maximum of 1.5.
Dimensions
Open Rafter:
- 5 x 5: 3658mm (144") w x 203mm (8") h x 3658mm (144") d
- 4 x 5: 3048mm (120") w x 203mm (8") h x 3658mm (144") d
- 3 x 5: 2438mm (96") w x 203mm (8") h x 3658mm (144") d
- 2 x 5: 1829mm (72") w x 203mm (8") h x 3658mm (144") d
- 1 x 5: 1219mm (48") w x 203mm (8") h x 3658mm (144") d
Composition
Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester
12mm (1/2") - Density 2.4 kg /m² 0.5 lb/ft²
Sustainability
Zintra is made from 100% recyclable materials.
- 60% post-consumer recycled content from Zintra bottles.
- 35% pre-consumer recycled content from Zintra chips.
- 5% polylactic acid (PLA).
Fire Rating
- ASTM-E84 – Class A classification
- AS ISO 9705 – 2003 – Group 1 classification
- EN-13501 – B-s2-d0 classification
Warranty
Visit FAQ for more details.
Assembly & Delivery
- Ships Flat Pack
- Assembly Required.
- Choose Cable Suspension or Unistrut. Refer to your preferred installation method in the Installation Guide.
- Go to the Technical Documents and download the Installation Guide for more details.
Supplied As
-
Open Rafter: 1 x Kit of chosen size including Clear 24mm (1") Beam Clips
5 x 5 = 144 clips | 4 x 5 = 122 clips | 3 x 5 = 100 clips | 2 x 5 = 78 clips | 1 x 5 = 56 clips
How to Specify
- Select Design
- Select Size
- Select Zintra Colour
Care Instructions
- Vacuum to remove dust.
- Dab Zintra with a damp clean cloth and a mild solution of liquid detergent and warm water. Repeat using only clean water, then pat dry with a lint-free cloth.
- For difficult stains, use a solution of household bleach (10% bleach / 90% water). To remove the bleach, repeat using a clean, water-dampened cloth, then pat dry.
- Always test in an inconspicuous area first, and if you don't see the expected results, contact us.
Customisable
The Zintra Acoustic Solutions range is customisable to your project. Please get in touch with your local contact for details.
Additional Comments
- NRC: 1.0
- NRC with Coffers: 1.5
