Zintra Beams Square
Zintra Beams Square
Description

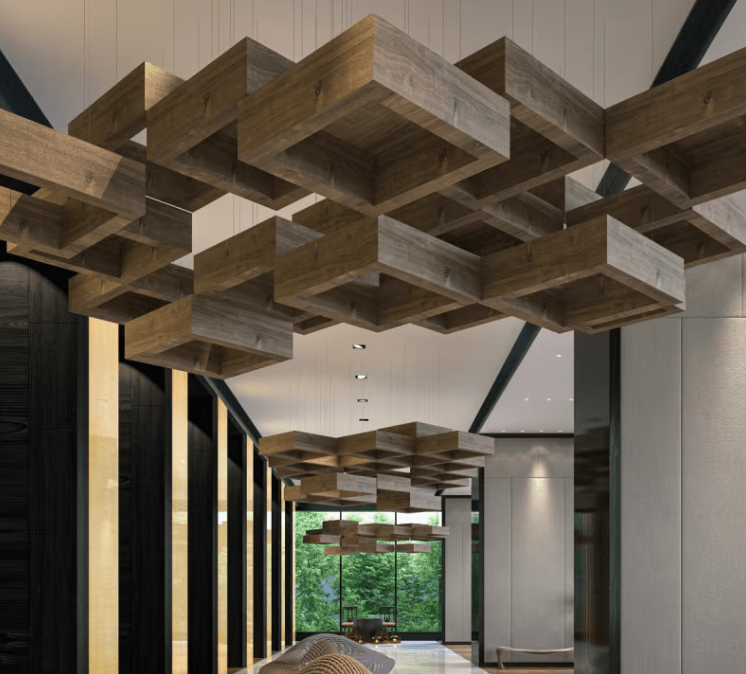

Large spaces require acoustic solutions that match their scale. The Zintra Beams collection addresses this need perfectly, offering substantial proportions that exude a sense of structure and architectural grandeur. Their modular design allows for a variety of configurations across a range of styles and sizes, with connectors for effortless customization to suit any space.
There are 5 different geometric designs available:
- Open Rafter
- Closed Rafter
- Rectangular
- Square
- Parallel Beams
Available in various sizes (please refer to the dimensions for design-specific details). For added acoustic comfort, optional coffer panels are available to suit open, closed, and square designs.

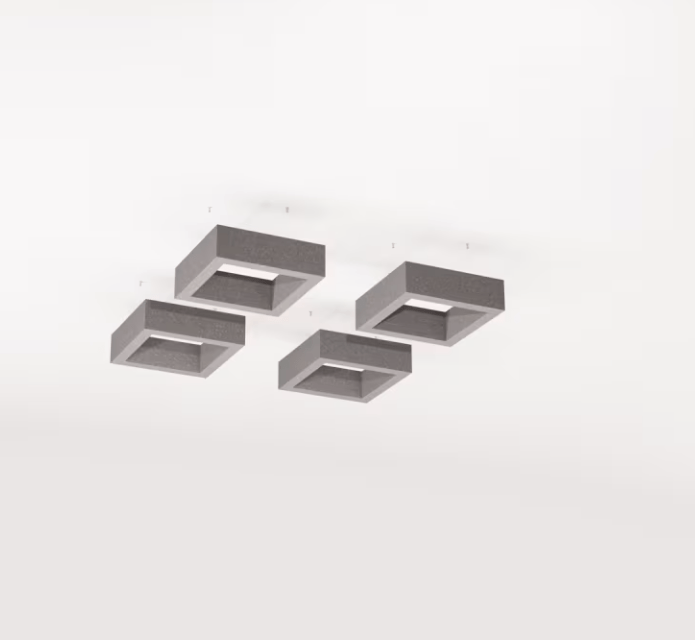

Square Beam
Offering a contemporary or traditional feel, Square Beams are lightweight and modular, available in sets of 4. Mix and match colours and heights for versatile design options. Additionally, optional coffer panels are available to further enhance the NRC rating.
Engineered for superior sound absorption, Zintra Beams function as porous absorbers across the entire frequency range. This significantly enhances the NRC rating, up to a maximum of 1.5.
Dimensions
Square Beam:
- 686mm (27") w x 203mm (8") h x 686mm (27") d
- Set of 4
Composition
Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester
12mm (1/2") - Density 2.4 kg /m² 0.5 lb/ft²
Sustainability
Zintra is made from 100% recyclable materials.
- 60% post-consumer recycled content from PET bottles.
- 35% pre-consumer recycled content from PET chips.
- 5% polylactic acid (PLA).
Fire Rating
- ASTM-E84 – Class A classification
- AS ISO 9705 – 2003 – Group 1 classification
- EN-13501 – B-s2-d0 classification
Warranty
Visit FAQ for more details.
Assembly & Delivery
- Ships Flat Pack
- Assembly Required.
- Choose Cable Suspension or Unistrut. Refer to your preferred installation method in the Installation Guide.
- Go to the Technical Documents and download the Installation Guide for more details.
Supplied As
- Square Beam: Set of 4
- 1 x Kit including: Clear 24mm (1") Beams Clip x 32
- Coffers: Set of 8 Coffers
How to Specify
- Select Design
- Select Size
- Select Zintra Colour
Care Instructions
- Vacuum to remove dust.
- Dab Zintra with a damp clean cloth and mild solution of liquid detergent and warm water. Repeat using only clean water, then pat dry with a lint-free cloth.
- For difficult stains, use a solution of household bleach (10% bleach / 90% water). To remove the bleach, repeat using a clean, water-dampened cloth, then pat dry.
- Always test in an inconspicuous area first, and if you don't see the expected results, contact us.
Customisable
The Zintra Acoustic Solutions range is customisable to your project. Please get in touch with your local contact for details.
Additional Comments
- NRC: 1.0
- NRC with Coffers: 1.5
