Connect Prismatic
Connect Prismatic
Description

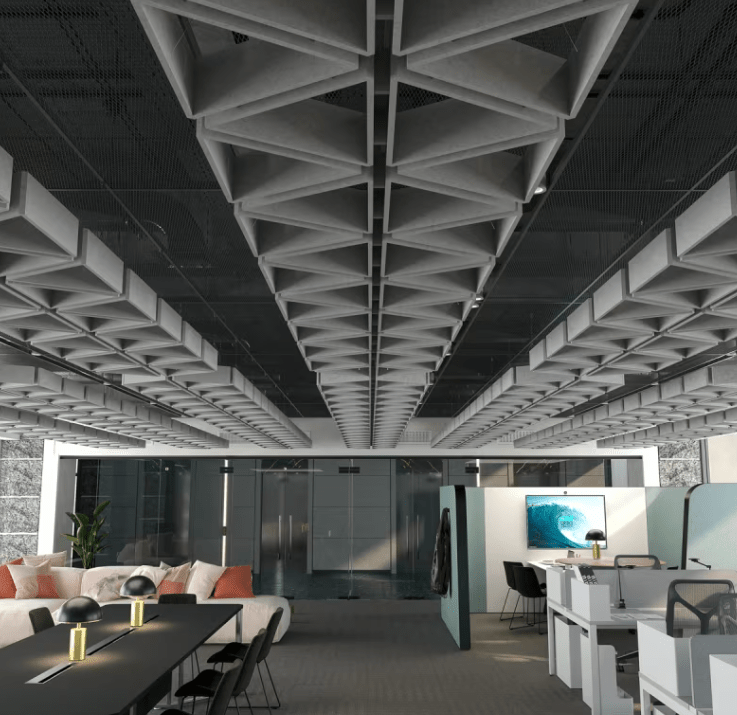

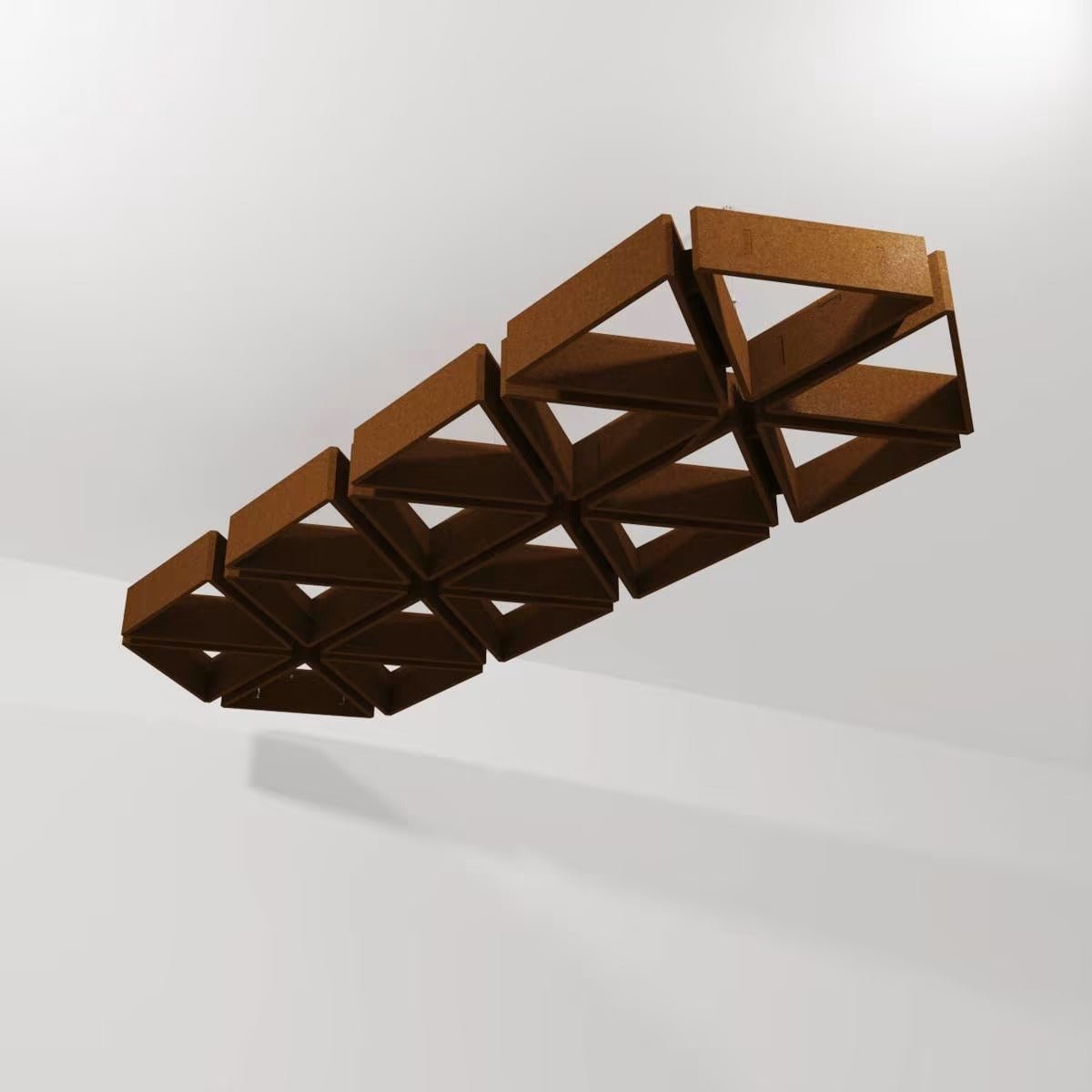

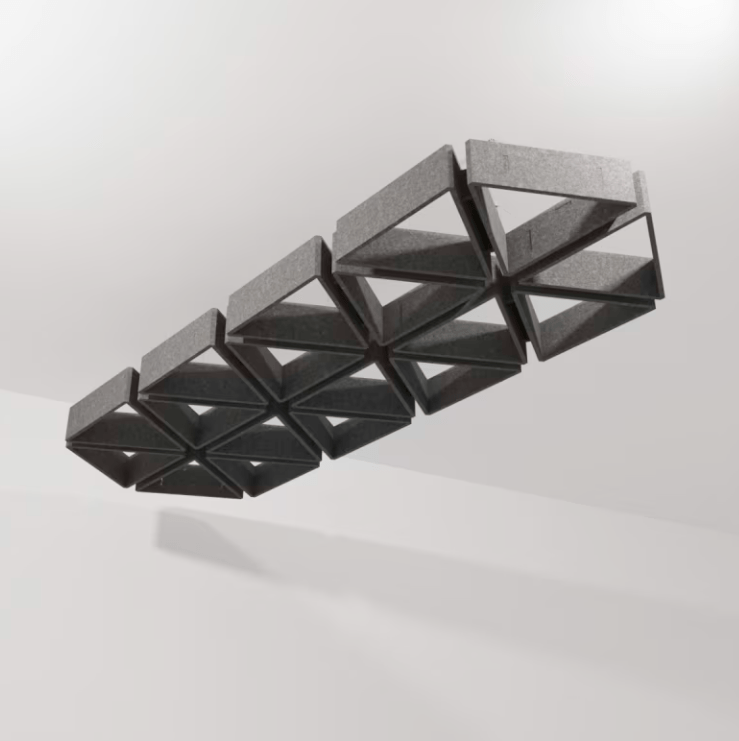

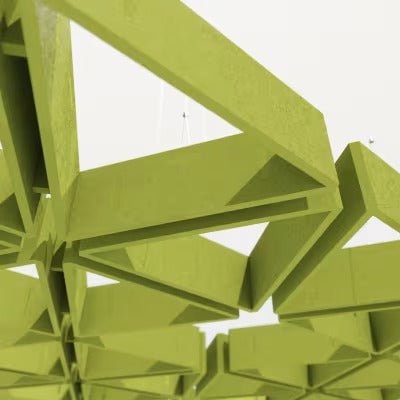

Add sculptural on-trend geo-accents to your ceiling space with Connect Baffles. An innovative solution to large areas requiring improved acoustics, Connect Baffle options are designed with full ceiling coverage in mind and will create a ceiling space with architectural shape, form, and definitive character. Connect Prismatic features a collection of interconnected triangles, presenting a visually captivating and harmonious design. This pattern introduces a sense of structure and balance to interior spaces.
Connect Baffles are also available in 4 other great designs:
- Cirrus: Characterized by a linear, interconnected design, arranged in a flowing, cohesive formation. This pattern adds a sense of movement and unity to interior spaces.
- Cubix: Features a grid of interconnected squares, creating a visually dynamic and orderly design. This pattern brings a sense of structure and balance to interior spaces.
- Hive: Showcases a network of interconnected hexagons, offering a visually striking and cohesive design. This pattern introduces a sense of symmetry and harmony to interior spaces.
- Rise: Showcases a combination of interconnected geometric shapes, including small rectangles and larger, randomized forms. This captivating design adds visual interest and complexity to interior spaces.
Dimensions
Prismatic
18 triangles / set, 1.7m² (16.9 SF)
- 768mm (30.2”) w x 2241mm (88.2”) d x 120mm (4.7”) h
Composition
Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester
12mm (1/2") - Density 2.4 kg /m² 0.5 lb/ft²
Sustainability
Zintra is made from 100% recyclable materials.
- 60% post-consumer recycled content from PET bottles.
- 35% pre-consumer recycled content from PET chips.
- 5% polylactic acid (PLA).
Fire Rating
- ASTM-E84 – Class A classification
- AS ISO 9705 – 2003 – Group 1 classification
- EN-13501 – B-s2-d0 classification
Assembly & Delivery
Connect Baffles are supplied flat pack.
- Assemble your Connect Baffle then suspend from the ceiling using hanging hardware supplied.
- Recommended: Assembly by 2 people.
- Go to the Technical Documents and download the Installation Guide for more details.
Supplied As
Connect Prismatic:
- 18 Connect Connectors
- 1 x each Hanger Bolt, Adjustable Fastener, Cable with swage end, and barrel.
Fabrication Techniques
Stanley knife and straight edge
How to Specify
- Select Design
- Select Size
- Select Zintra Colour
Care Instructions
- Vacuum to remove dust.
- Dab Zintra with a damp clean cloth and a mild solution of liquid detergent and warm water. Repeat using only clean water, then pat dry with a lint-free cloth.
- For difficult stains, use a solution of household bleach (10% bleach / 90% water). To remove the bleach, repeat using a clean, water-dampened cloth, then pat dry.
- Always test in an inconspicuous area first, and if you don’t see the expected results, contact us.
Customizable
The Zintra Acoustic Solutions range is customisable to your project. Please get in touch with your local contact for details.
Additional Comments
NRC Rating
- Without Air Gap: Up to 0.90
- With 24" (610mm) Air Gap: Up to 0.95
