Emboss Panel Corduroy Fine

Description

Zintra Emboss Panels brings a touch of luxury to acoustic solutions, combining timeless craftsmanship with advanced technology. These tactile three-dimensional panels create an immersive experience that transforms the ambiance of any space. The warm heather of Zintra softens the environment, ensuring that even the most austere spaces feel inviting.

Designed for seamless installation, Zintra Emboss Panels can be installed both vertically or horizontally, offering versatile design possibilities. They provide more than just noise absorption—they tell a story with every surface. Their intricate patterns and dynamic visual effects shift with perspective, adding depth and warmth to any room, making conversations flow effortlessly without echoes or disturbances.

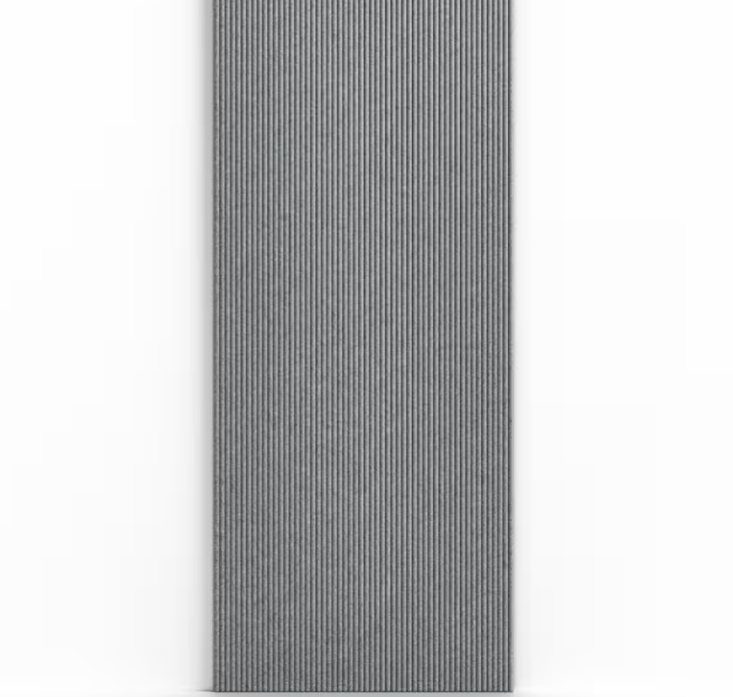

Corduroy Fine

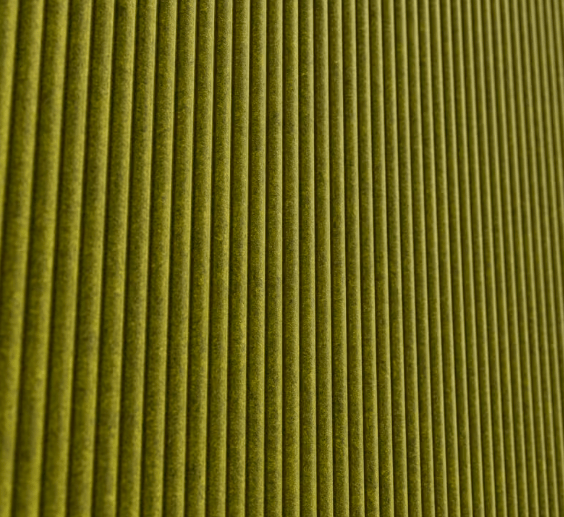

The delicate counterpart to the classic Corduroy design, offers a refined 20mm rib, compared to the broader 40mm rib of its partner. Use individually or combine these two designs to create a rich, layered effect, adding depth and sophistication to any space.

The finer ribbing of Corduroy Fine introduces a subtle yet impactful tactile quality, enhancing the warmth of Zintra’s acoustic panels. Inspired by the timeless elegance of the Corduroy textile, this design infuses interiors with a sense of quiet luxury, making it the perfect choice for spaces that demand both acoustic performance and visual appeal.

Available in 18 great designs:

• Ascend
• Celium
• Constellation
• Corduroy
• Corduroy Fine
• Cumulus
• Damask
• Jungle
• Linked
• Molecular
• Rivulet
• Sandglass
• Scallop
• Stitched
• Tapestry
• Tidal
• Tufted
• Woven

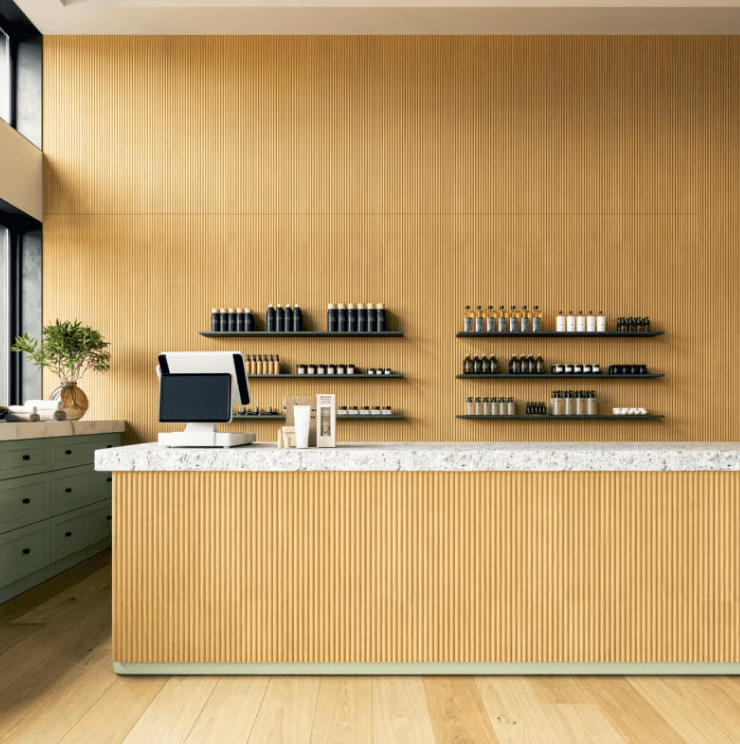

In hospitality, commercial, and care environments, Zintra Emboss Panels don't just absorb sound – they elevate spaces with their luxurious textures and calming designs, creating atmospheres that are as visually captivating as they are acoustically sound.

Please note: Zintra Emboss is suitable for single-sided applications only.

Don't just design spaces. Craft experiences.

Dimensions

• Available in 12mm (1/2")
• 2743mm (108”) x 1118mm (44”)

“Emboss Panel patterns will align with a commercial tolerance of +/- 1mm. Panel thickness may vary by 15%. Pack as required to align face.”

Composition

Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester

• 12mm (1/2") - Density 2.4 kg /m² (0.5 lb/ft²)

Sustainability

• Zintra is made from 100% recyclable materials.
• 60% post-consumer recycled content from PET bottles.
• 35% pre-consumer recycled content from PET chips.
• 5% polylactic acid (PLA).

Fire Rating

• ASTM-E84 – Class A classification
• AS ISO 9705 – 2003 – Group 1 classification
• EN-13501 – B-s2-d0 classification

Assembly & Delivery

• Ships Flat Pack
• Go to the Technical Documents and download the Installation Guide for more details.

Supplied As

• 1 x Emboss Panel in selected pattern

Suggested Installation

Go to Technical Documents and download the Installation Guide for more details.

Fabrication Techniques

• Utility knife and CNC with oscillating knife.

How to Specify

• Select Emboss design
• Select Zintra Colour

Care Instructions

• Vacuum to remove dust.
• Dab Zintra with a damp clean cloth and mild solution of liquid detergent and warm water. Repeat using only clean water, then pat dry with a lint-free cloth.
• For difficult stains, use a solution of household bleach (10% bleach / 90% water). To remove the bleach, repeat using a clean, water-dampened cloth, then pat dry.
• Always test in an inconspicuous area first, and if you don't see the expected results, contact us.

Additional Comments

• NRC 0.35
