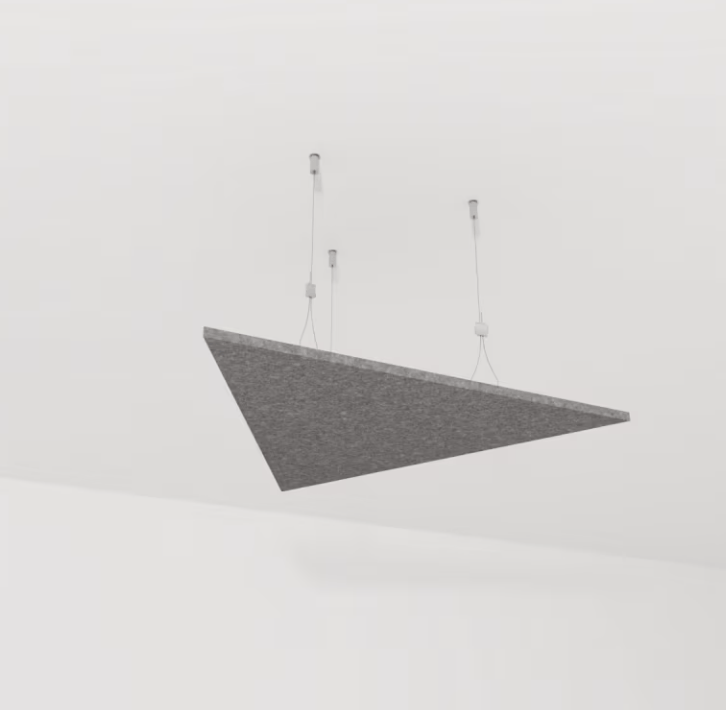

Shapes Triangle

Description

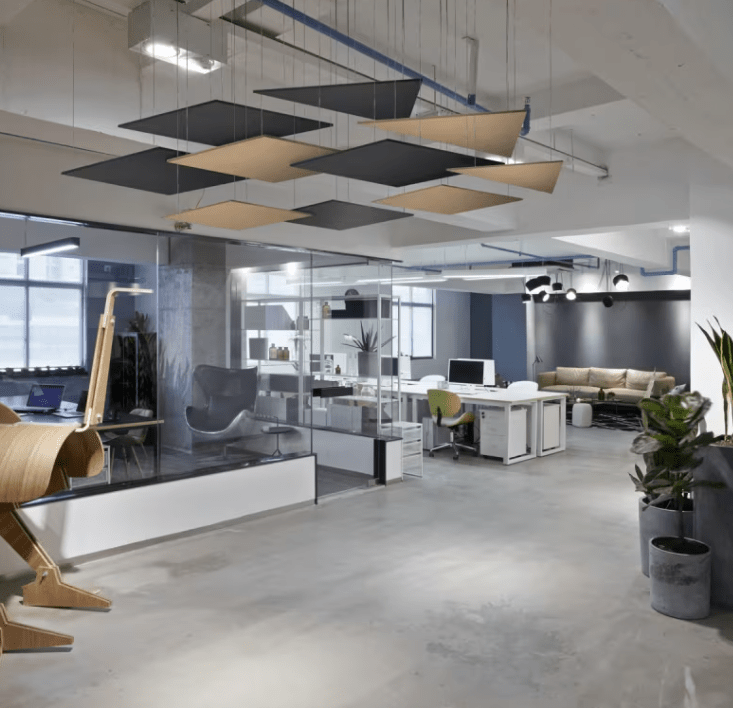

Zintra Shapes use geometric forms to complement the traditional angles of a room. Working well on their own or as a group, Shapes can be hung to draw attention to a specific space or spread out to draw the eye over the entire length of a room.

Triangle:
Harness the power of angles with this geometric marvel. Infuse any space with a contemporary edge, of modernity and dynamism.

Also available in 4 other great geometrical shapes and various sizes:

• Circle:
  Emphasize the beauty of curves. This timeless shape brings a sense of unity and harmony to your space. Whether used individually or in combination, creates a visually captivating and balanced ambiance that invites relaxation and creativity.
• Hexagon:
  Experience the allure of symmetry with this versatile and modern shape, designed to inspire a sense of balance and sophistication.
• Square:
  The symmetrical nature of this shape brings a sense of stability and balance to your space.
• Rectangle:
  The clean lines and defined form of this shape, provide a sleek and structured elegance.

Dimensions
Triangle: Available in 2 sizes

• Small: 522mm (20.5") h x 603mm (23.8") w
• Large: 1213mm (47.8") h x 1400mm (55.1") w

Composition

• Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester
• 12mm (1/2") - Density 2.4 kg /m² 0.5 lb/ft²
• 24mm (1") - Density 3.6 kg /m² 0.75 lb/ft²

Sustainability

• Zintra is made from 100% recyclable materials.
• 60% post-consumer recycled content from PET bottles.
• 35% pre-consumer recycled content from PET chips.
• 5% polylactic acid (PLA).

Fire Rating

• ASTM-E84 – Class A classification
• AS ISO 9705 – 2003 – Group 1 classification
• EN-13501 – B-s2-d0 classification

Warranty
Visit FAQ for more details.

Assembly & Delivery

• Shapes supplied flat pack.
• Assembled shape is then suspended from the ceiling using hanging hardware supplied.
• Recommended 2 People assembly.
• Go to the Technical Documents and download the Installation Guide for more details.

Supplied As

• Shape in selected design and colour.
• Cables to suit.

How to Specify

• Select Design
• Select Size
• Select Zintra Colour

Care Instructions

• Vacuum to remove dust.
• Dab Zintra with a damp clean cloth and mild solution of liquid detergent and warm water. Repeat using only clean water, then pat dry with a lint free cloth.
• For difficult stains, use a solution of household bleach (10% bleach / 90% water). To remove the bleach, repeat using a clean, water dampened cloth, then pat dry.
• Always test in an inconspicuous area first and if you don't see the expected results, contact us.

Customizable
The Zintra Acoustic Solutions range is customisable to your project. Please get in touch with your local contact for details.

Additional Comments
NRC Rating

• 1/2" (12mm) NRC Rating
• Directly Mounted: 0.45
• With 2" (50mm) Air Gap: 0.85
• With 6" (152mm) Air Gap: 0.90
• With 12" (305mm) Air Gap: 0.95
• 1" (24mm) NRC Rating
• Directly Mounted: 0.75
• With 2" (50mm) Air Gap: 0.95
• With 6" (152mm) Air Gap: 0.95
• With 12" (305mm) Air Gap: 1.00
