Box Baffles Random

Description
Zintra Baffles are prefabricated, ceiling-mounted systems that showcase Zintra’s flexible characteristics. Zintra Acoustic Baffles are an innovative replacement for a mineral fibre lay system. Easy to assemble, install, and available in a wide array of designs, baffles are ideal for large, noisy spaces in educational institutions, shopping centres, restaurants, and airports.

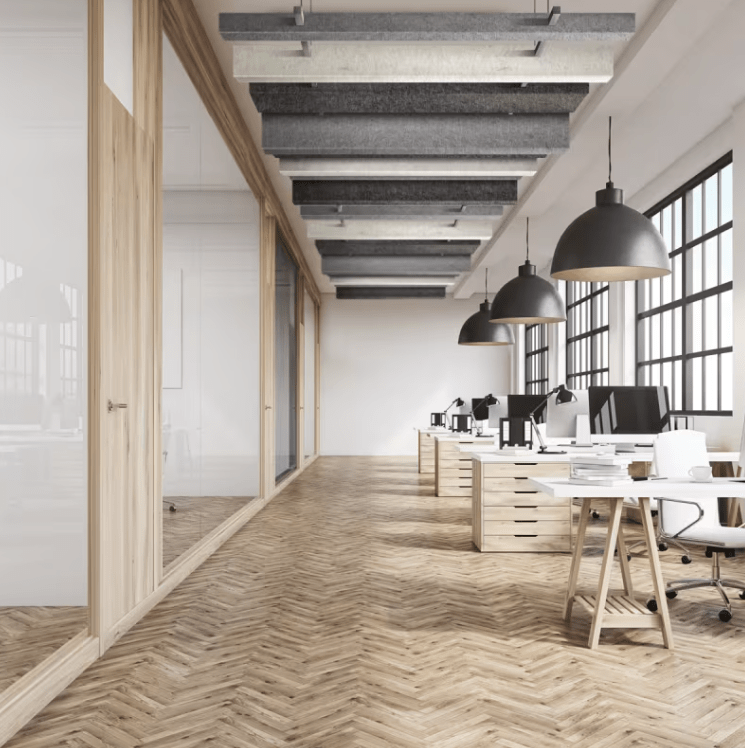

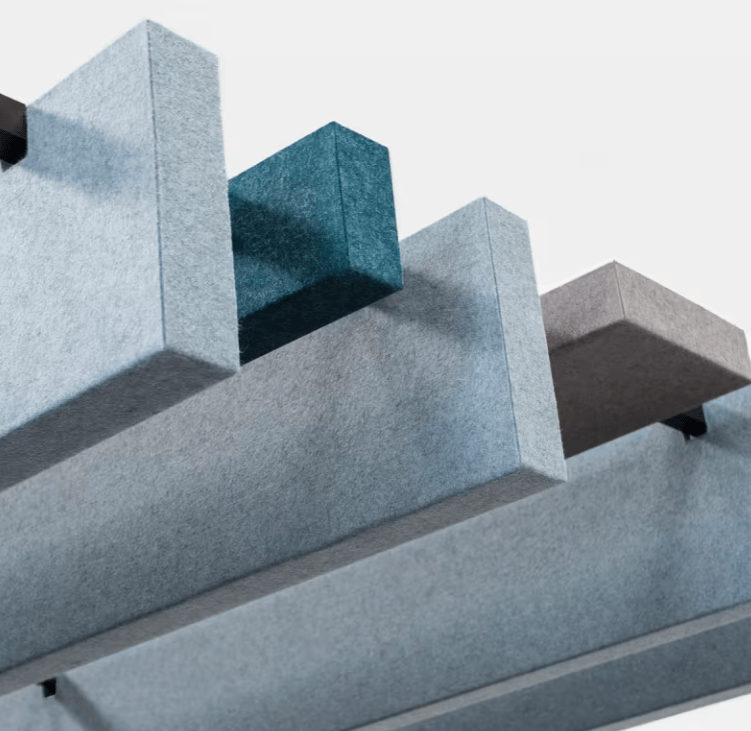

Suspended box-shaped baffles, hung in perfectly spaced rows, create these high-performing acoustic solutions. The box shape not only looks more substantial but also increases the NRC rating by capturing sound within. Choose the same shaped baffles for a uniform look or mix them up for added dimension.

Available in uniform (high and low), random, or mixed combinations.

Choose from one of our 12 vibrant powdercoat colours (additional charge applies).

Dimensions

• Available in 2 sizes:
  1000mm (39.4") w x 2400mm (95.4") d
  2362mm (92.3") w x 2400mm (95.4") d

Composition
Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester
12mm (1/2") - Density 2.4 kg /m² 0.5 lb/ft²

Sustainability
Zintra is made from 100% recyclable materials.

• 60% post-consumer recycled content from PET bottles.
• 35% pre-consumer recycled content from PET chips.
• 5% polylactic acid (PLA).

Fire Rating

• ASTM-E84 – Class A classification
• AS ISO 9705 – 2003 – Group 1 classification
• EN-13501 – B-s2-d0 classification

Warranty
Visit FAQ for more details.

Assembly & Delivery

• Ships Flat Packed.
• Assemble your Baffle System, then suspend it from the ceiling using the supplied hanging hardware.
• Recommended: Assembly by 2 people.
• Go to the Technical Documents and download the Installation Guide for more details.

Supplied As

• Zintra Baffles as per specified design.
• 6 x Adjustable Suspension Kit (ASK).
• 2 x Aluminium Tubes with Notches.

How to Specify

• Select Design
• Select Size
• Select Zintra Colour

Care Instructions

• Vacuum to remove dust.
• Dab Zintra with a damp clean cloth and a mild solution of liquid detergent and warm water. Repeat using only clean water, then pat dry with a lint-free cloth.
• For difficult stains, use a solution of household bleach (10% bleach / 90% water). To remove the bleach, repeat using a clean, water-dampened cloth, then pat dry.
• Always test in an inconspicuous area first, and if you don’t see the expected results, contact us.

Customisable
The Zintra Acoustic Solutions range is customisable to your project. Please get in touch with your local contact for details.

Additional Comments

• NRC Rating:
• Without Air Gap: Up to 0.90
• With 24" (610mm) Air Gap: Up to 0.95

Click here to download the Data Sheet
