Layers Panel 3D
Layers Panel 3D
Description
Elevate your space with the perfect blend of superior acoustics and unique character, courtesy of Zintra Layers 3D.
Discover the innovative technique behind Zintra Layers, where vibrant strips of Colour are meticulously layered onto a Zintra Acoustic panel backer, offering a versatile solution for your acoustic design needs. Whether you're craving a subtle infusion or a bold explosion of Colour, achieve unparalleled acoustics and individuality effortlessly.

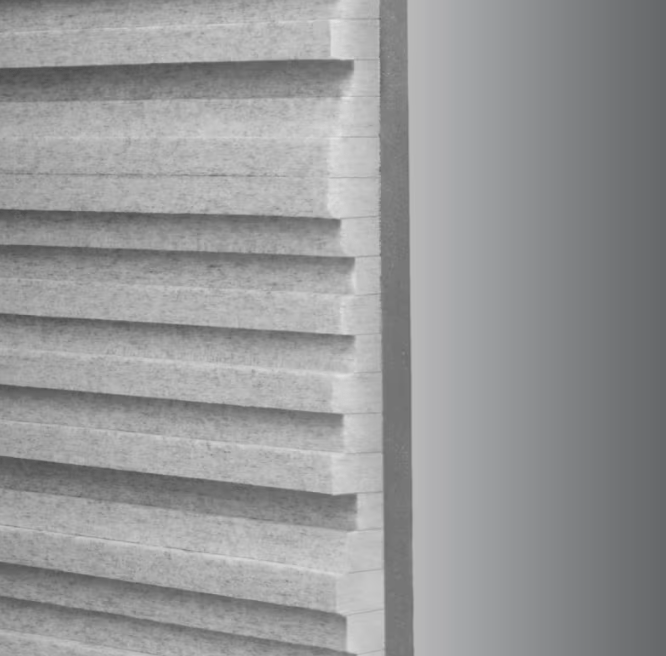

For those seeking the pinnacle of acoustic performance. Zintra Layers 3D craft a handmade 3-dimensional surface that not only reduces echoes but achieves an impressive NRC of up to 1.0 with an air gap. Elevate your space to new heights with Zintra 3D Layers.
Dimensions
- 2745mm (108") x 1207mm (47.5")
Composition
- Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester
- 12mm (1/2") - Density: 2.4 kg/m² (0.5 lb/ft²)
Sustainability
- Zintra is made from 100% recyclable materials:
- 60% post-consumer recycled content from PET bottles
- 35% pre-consumer recycled content from PET chips
- 5% polylactic acid (PLA)
Fire Rating
- ASTM-E84 – Class A classification
- AS ISO 9705 – 2003 – Group 1 classification
- EN-13501 – B-s2-d0 classification
Warranty
Visit FAQ for more details.
Assembly & Delivery
Ships Assembled ready for installation. Refer Installation instructions.
Recommended 2 People assembly
Go to the Technical Documents and download the Installation Guide for more details.
Supplied As
1 x Layer Panel in selected Colour/s
Suggested Installation
Go to Technical Documents and download the Installation Guide for more details.
How to Specify
- Select Layers or Layers 3D design
- Select Zintra Colour
Care Instructions
- Vacuum to remove dust.
- Dab Zintra with a damp clean cloth and mild solution of liquid detergent and warm water. Repeat using only clean water, then pat dry with a lint-free cloth.
- For difficult stains, use a solution of household bleach (10% bleach / 90% water). To remove the bleach, repeat using a clean, water-dampened cloth, then pat dry.
- Always test in an inconspicuous area first, and if you don't see the expected results, contact us.
Customisable
The Zintra Acoustic Solutions range is customisable to your project. Please get in touch with your local contact for details.
Additional Comments
NRC Up to 1.0
Click here to download the Data Sheet
