Phonic Absorb

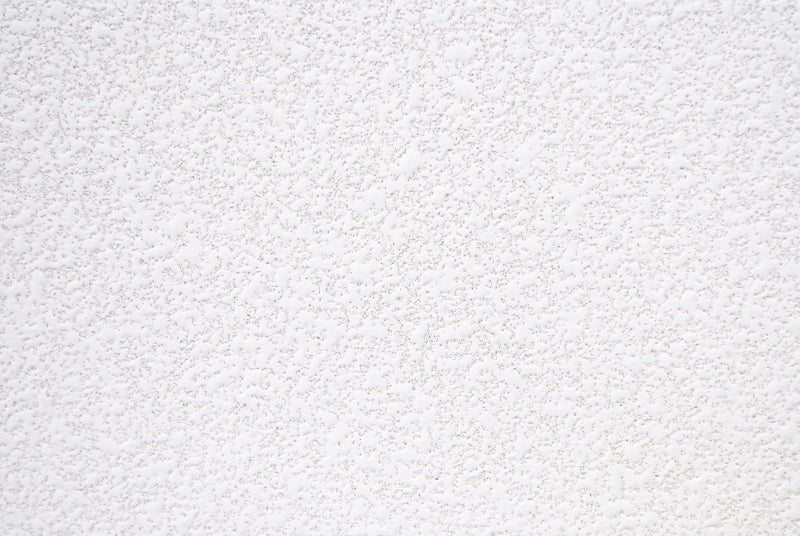

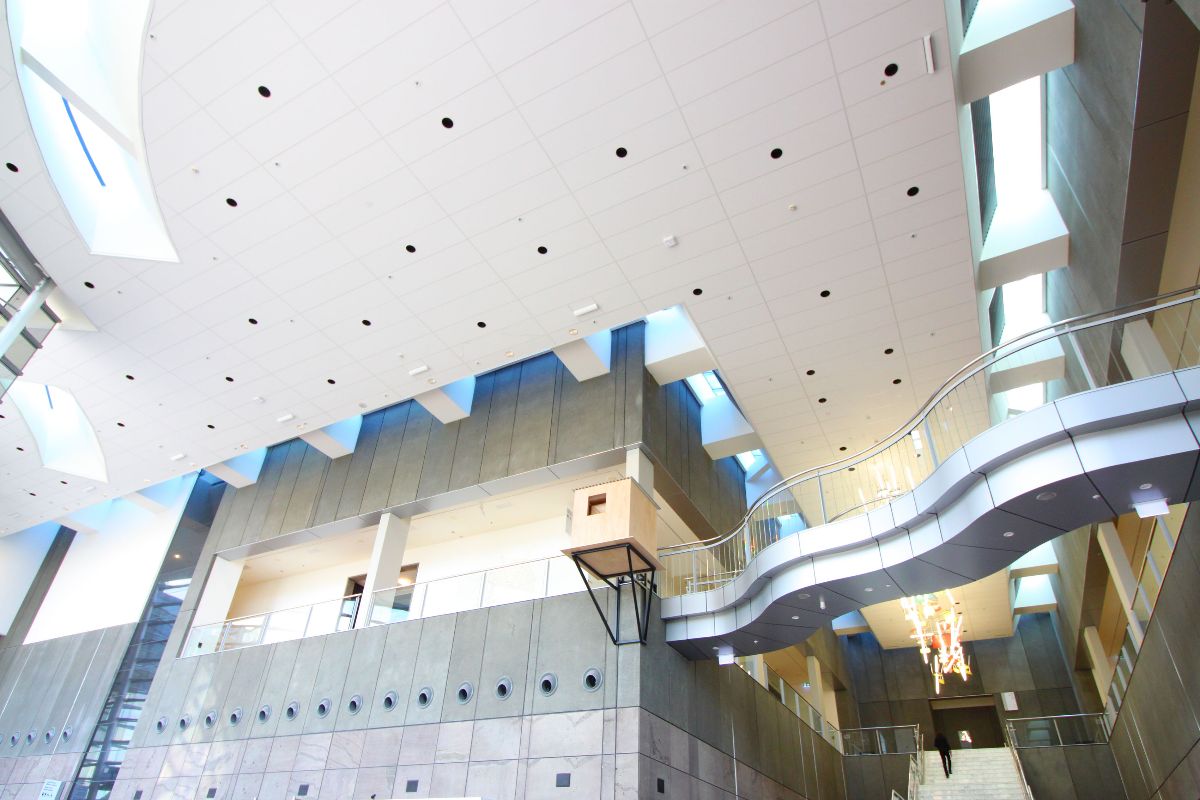

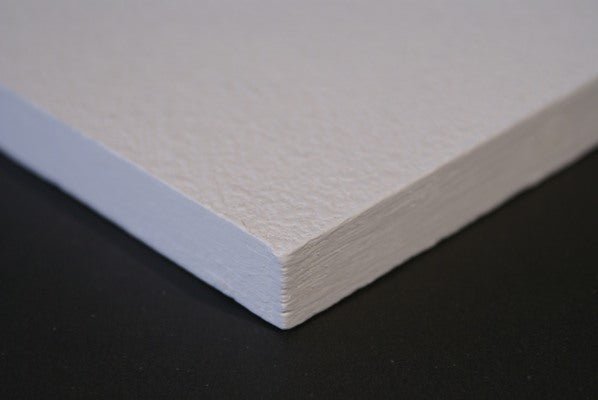

Phonic Absorb is a glass wool tile with a refined white or black painted monolithic pre-finished face. It offers extremely high-performance acoustic absorption (NRC) and is ideal for exhibit halls, museums, medical centers, offices, classrooms, receptions, meeting rooms, and other commercial interiors. Phonic Absorb is also an antimicrobial tile.

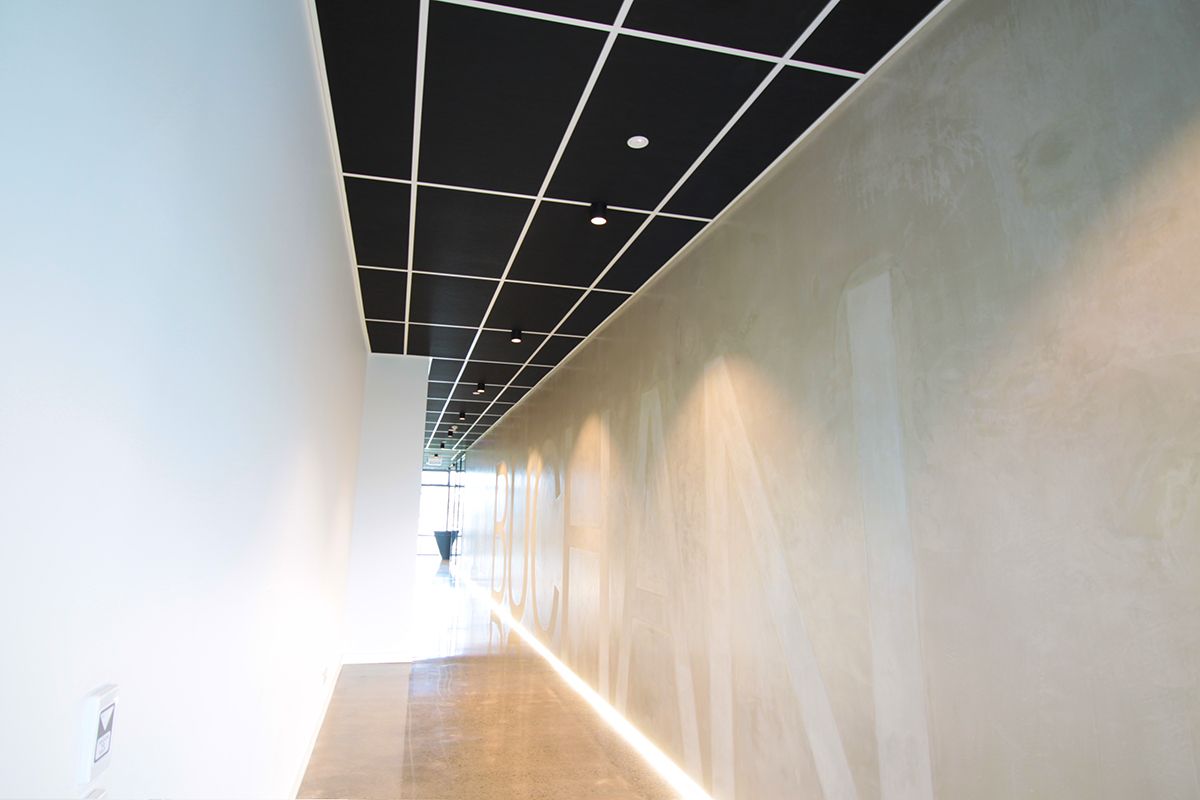

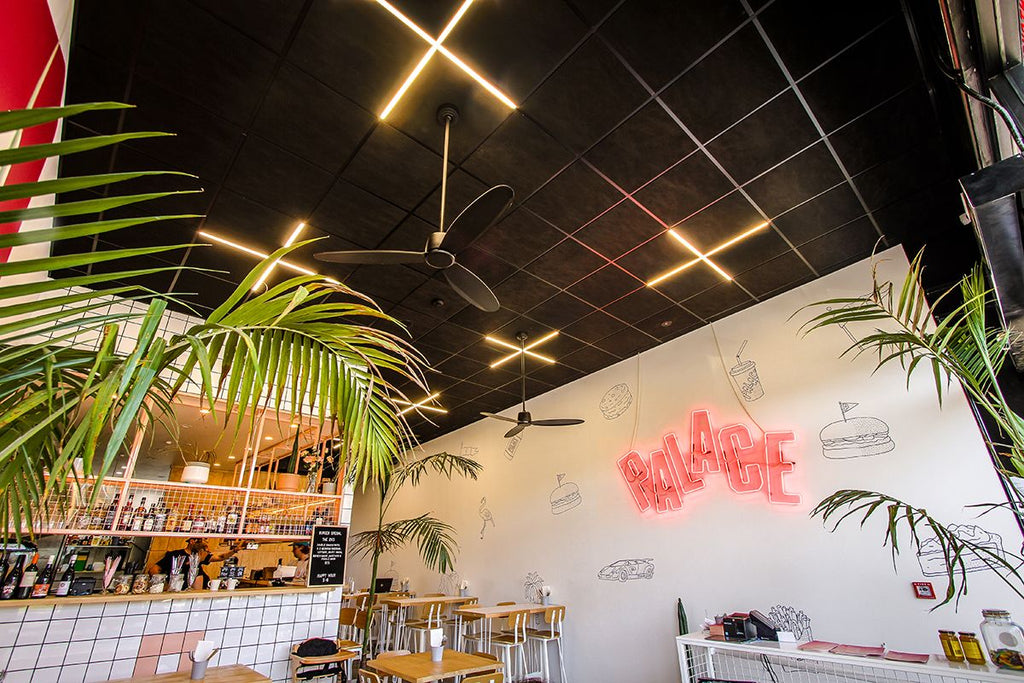

The tile is extremely lightweight, reducing the need for extensive seismic bracing. A black suspended ceiling provides a modern and contemporary look, achievable with black Phonic and black CBI grid. Additionally, it is available in a range of colors on an indent basis.

Specifications

• High Performance Acoustic Ceiling Tile
• Light Reflectance: 87% +
• Density: 100kgs/m³
• Fire Test: Group 1-S
• Moisture Rate: <1%
• Thermal Resistance: <0.4 (m² – k/w)

Performance

Phonic Absorb 15mm Tile

• NRC: 0.85
• SAA: 0.94
• αw: 0.80
• CAC & D n,c,w: 22
• Weight: 1.5kg
• Estimated R Value: R0.4

Phonic Absorb 20mm Tile

• NRC: 0.90
• SAA: 1.02
• αw: 0.90
• CAC & D n,c,w: 23
• Weight: 2.0kg
• Estimated R Value: R0.5

Phonic Absorb 30mm Tile

• NRC: 0.95
• αw: 0.90
• CAC: 33
• Weight: 3.6kg (Density: 120kg/m²)
• Estimated R Value: R0.8

Sizes

Available in various edge finishes: Square Edge, Reveal Edge, Concealed, Direct Fix.

• [1200 x 600] [600 x 600] [2400 x 600]
• [1500 x 300]* [1200 x 300]* (*Available on indent order)

Designed to suit 24mm grid patterns. Other sizes available on request.

Colors

Available in White and Black.

Testing & Warranty

If you require testing certificates, please contact us.

Warranty: 30-year lifetime system warranty to withstand conditions up to 40° and 99% relative humidity without visible sag when used with a T&R brand suspension system.

For Green Star rated projects, Phonic meets the Greenguard Emission Certificate Standard.

In Service History

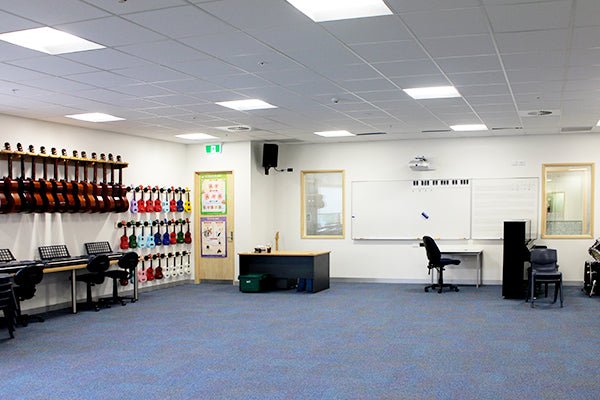

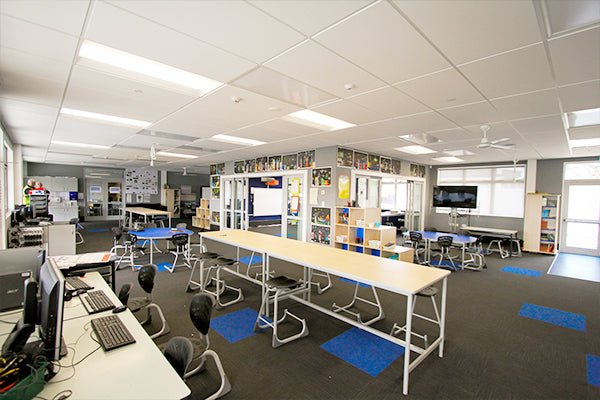

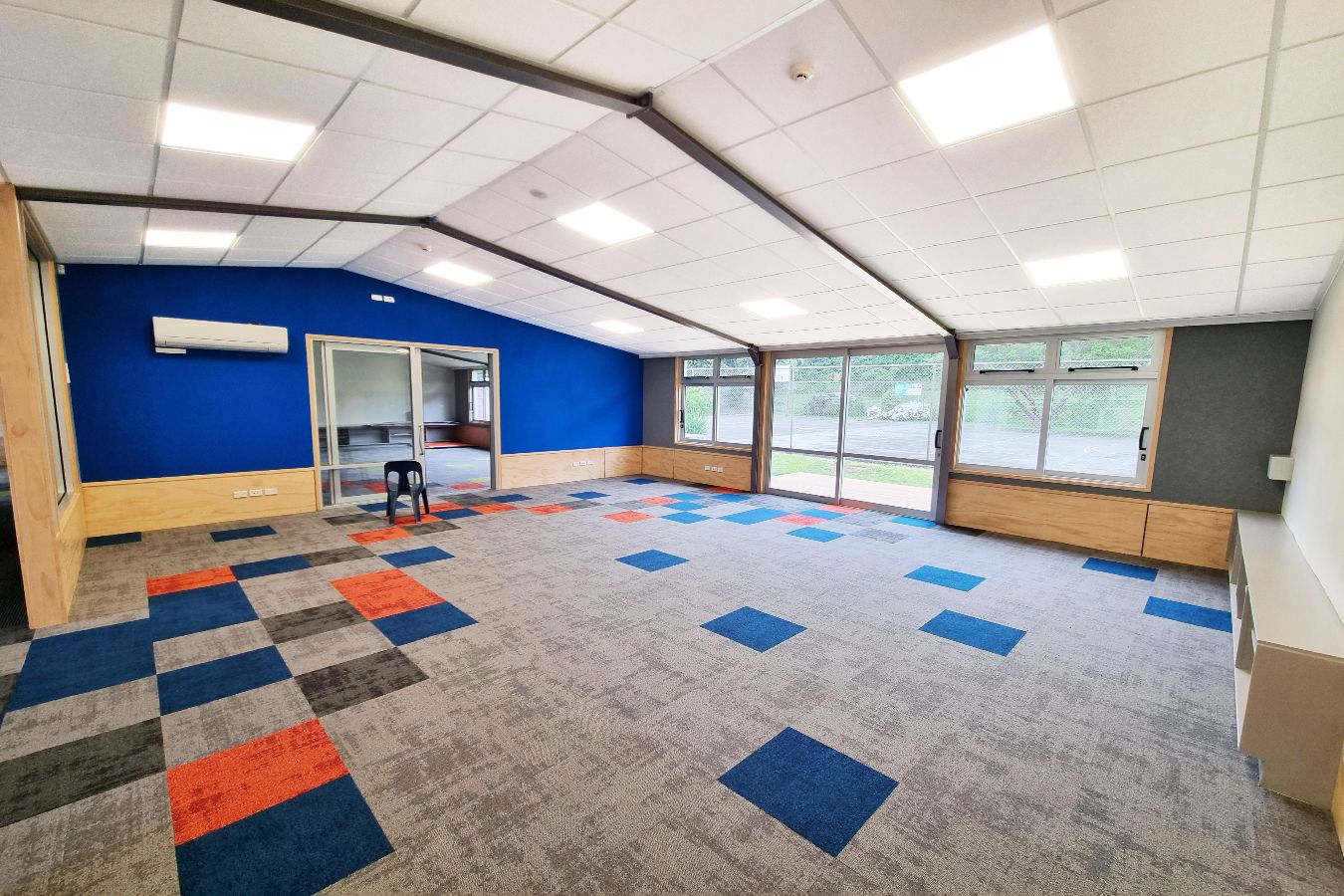

Phonic Absorb has been installed in various projects, including:

• Deloitte, Dunedin
• Bayfield School, Auckland
• Christchurch Hospital, Amau Ward
• Christchurch City Art Gallery
• Ellerslie School, Auckland
• Flex Fitness, Tauranga
• Koha Gym, Christchurch
• New Zealand Post, Palmerston North
• Rangi Ruru School Music Centre, Christchurch
• Trustpower, Tauranga
• Wellington East Girls College
• Weta Digital Editing Suite, Wellington

For product warranties, completion documents, and test reports, please contact T&R Interior Systems: info@tris.co.nz

Click here to download Data Shee

Click here to download Maintenance Guide

Click here to download EcoSquare Installation
