Phonic Fine Fissured Mineral Fibre Acoustic Ceiling Tile

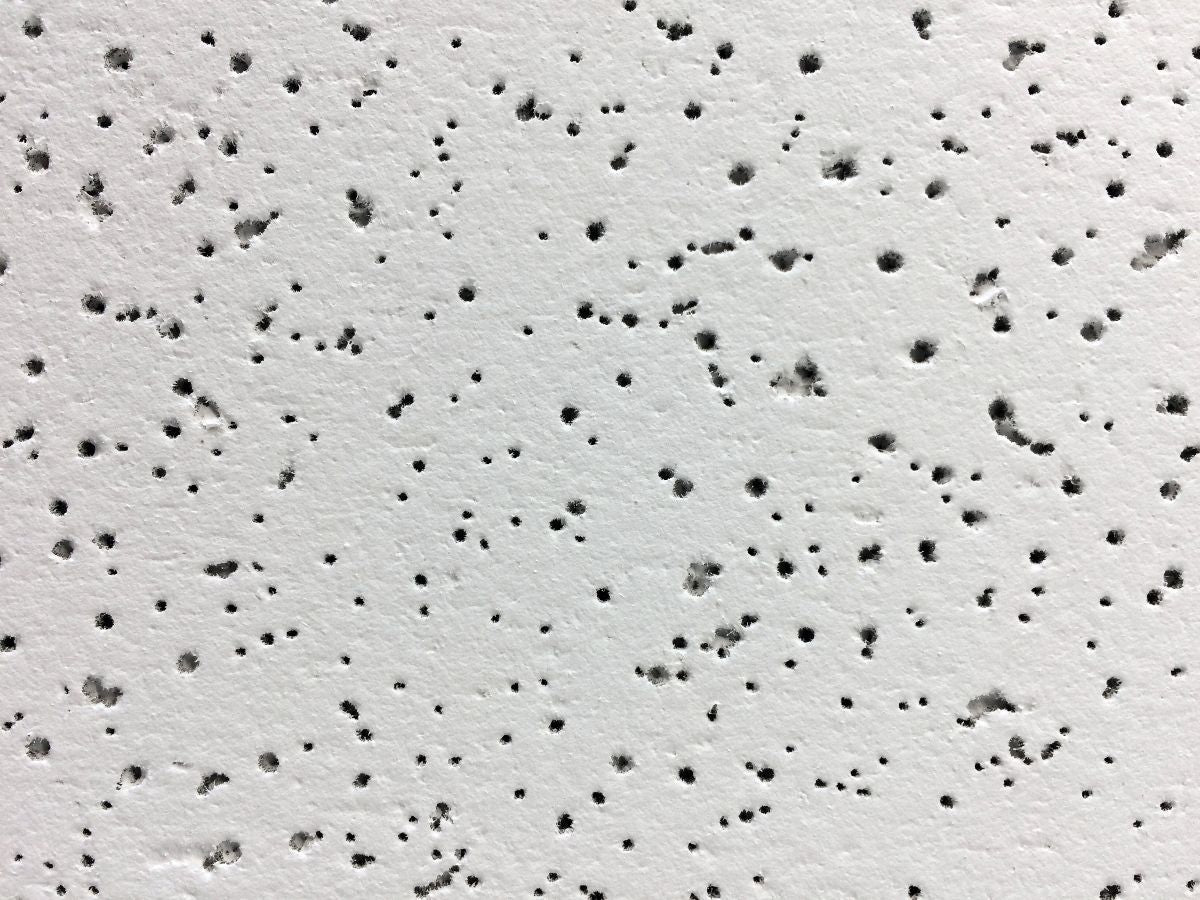

The Phonic Fine Fissured mineral fibre acoustic ceiling tile features a non-directional fissured clean white surface. It provides a medium Noise Reduction Coefficient (NRC) and Ceiling Attenuation Class (CAC) to help reduce reverberation time and prevent sound transfer through the ceiling plenum.
Fine Fissured is an economical tile in the Phonic range, favoured for its durability and ease of handling. Phonic mineral fibre ceiling tile materials are not only non-combustible but are also less likely to emit gas or smoke, or to melt, break, or deform under normal fire conditions.
Warranty: 30-year lifetime system warranty to withstand conditions up to 40°C and 99% relative humidity without visible sag when used with a T&R Interior Systems brand suspension system.
Key Features
- Non-directional fissured surface for a clean and uniform look.
- Medium NRC for effective sound absorption.
- Medium CAC to reduce sound transfer.
- Durable and easy to handle.
- Non-combustible with excellent fire resistance.
Specifications
- Acoustic Performance:
- NRC: 0.45 (ASTM C423-99)
- αw: 0.45 (ISO 11654)
- SAA: 0.47 (ASTM C423-99)
- Attenuation:
- CAC: 35 (ISO 717-1)
- Dn,c,w: 35 (ISO 717-1)
- Weight: 15mm: 4.2kg/m²
- Light Reflectance: LR1 75%+ (ASTM C523)
- Fire Test: ISO 5660 Parts 1&2 - Group 1-S (BRANZ Cone Calorimeter / NZBC C/AS1 – AS27)
- Relative Humidity: RH 99%
- Thermal Conductivity: >0.045 (kcal/mh°C) (JIS A 1412)
- Estimated R-Value: R0.3 (m²k/w)
Available Sizes
- 15mm Depth Square Edge: [1200 x 600]
- 15mm Depth Reveal Edge: [1200 x 600], [600 x 600] (on indent only)
- Other sizes available on request.
Colour
- White
For product warranties, completion documents, and test reports, please contact T&R Interior Systems: info@tris.co.nz
