Phonic Direct Fix

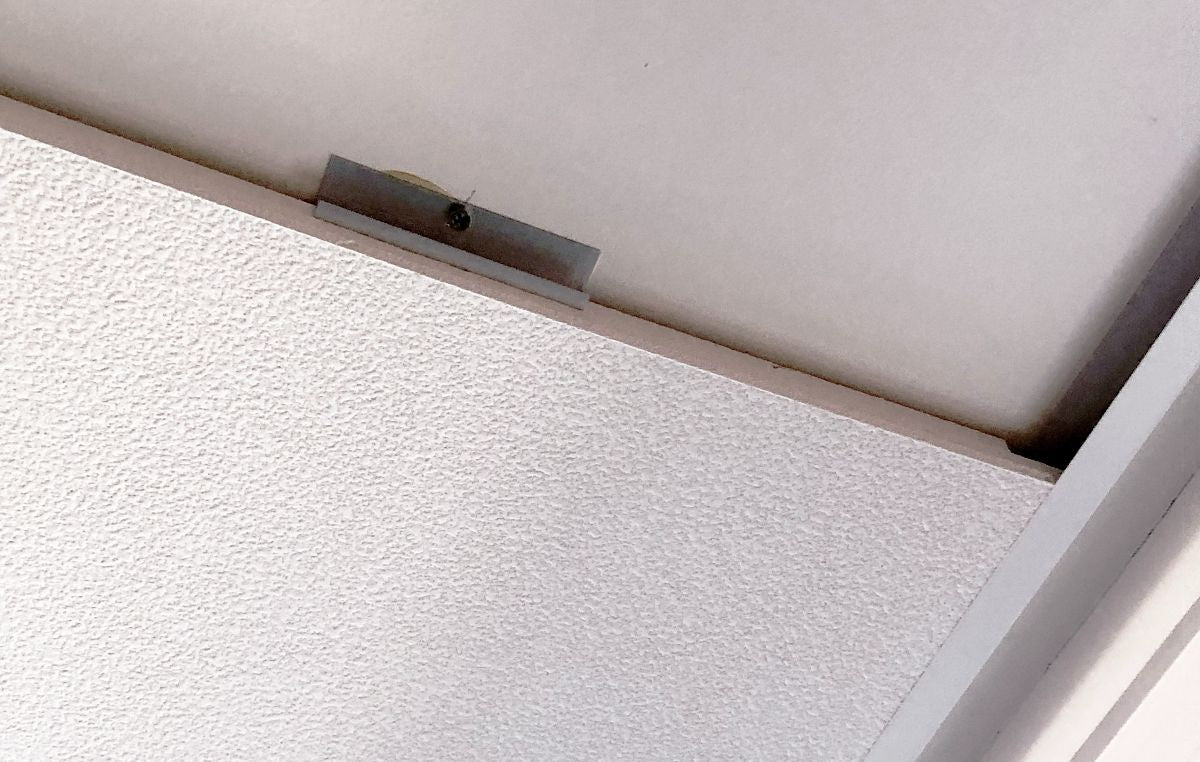

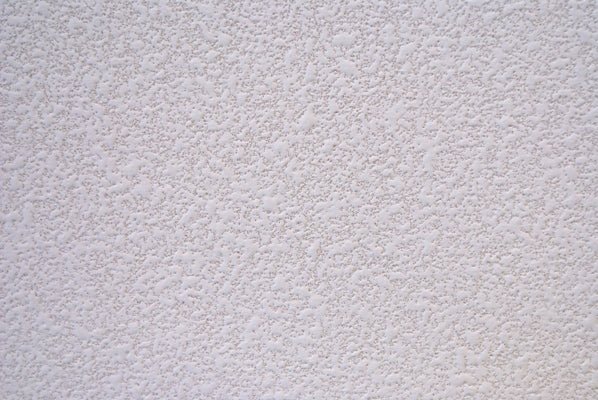

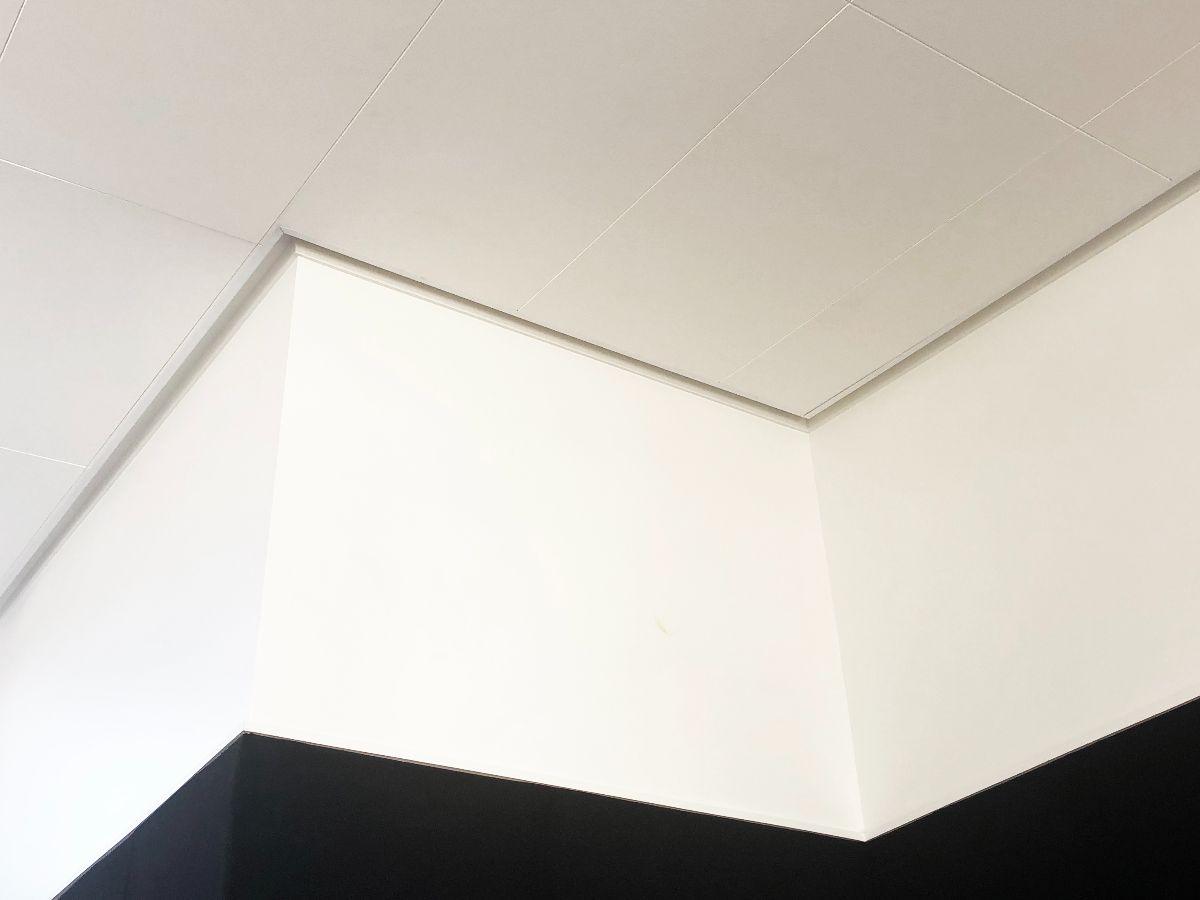

Phonic Direct Fix is a white painted, textured glasswool acoustic ceiling tile. It eliminates the need for an exposed grid, creating a smooth, monolithic surface. Designed for direct application to gypsum board, timber, or metal battens, it offers a high-end finish with excellent noise reduction properties.

Constructed from compounded, high-density glasswool, Phonic Direct Fix is lightweight, high-performing, and user-friendly. It is ideal for classrooms, offices, medical centers, lobbies, and other commercial interiors.

Specifications

• Warranty: 30-year lifetime system warranty
• Resistant to conditions up to 40°C and 99% relative humidity without visible sag (when used with a T&R Interior Systems suspension system)
• Installation in Ashlar pattern required for warranty validation

Acoustic Performance

Absorption (ISO 354) - 20mm Direct Fix:

• NRC: 0.75 (ASTM C423)
• αW: 0.55 (ISO 11654)
• SAA: 0.94 (ASTM C423)

Absorption with 35mm Air Gap:

• NRC: 0.85 (ASTM C423)
• αW: 0.85 (ISO 11654)
• SAA: 0.92 (ASTM C423)

Attenuation - 20mm

• CAC: 23
• Dn,c,w: 23

Additional Properties

• Light Reflectance (LR): 87%
• Density: 120 kg/m³
• Weight: 2.4 kg/m² (20mm)
• Fire Test: ISO 5660 Part 1 - Group 1-S
• Cleanroom Rating: ISO Class 3
• Moisture Rate: <1% (JC/T 670-2005)
• Thermal Conductivity: ≥ 0.4 (m².k/w)
• Estimated R-Value: 20mm: R0.5

Available Sizes

• 20mm Depth Standard: 600 x 600 mm
• 1200 x 600 mm available on indent order
• Other sizes available upon request

Color

White

Installation

Tiles must be installed in an Ashlar pattern to maintain warranty. See information brochure for details.

Testing & Certifications

For testing certificates, please contact us.

Warranty: 30-year lifetime system warranty under standard conditions.

Green Star Rated: Meets Greenguard Emission Certificate Standard for sustainability.

In Service History

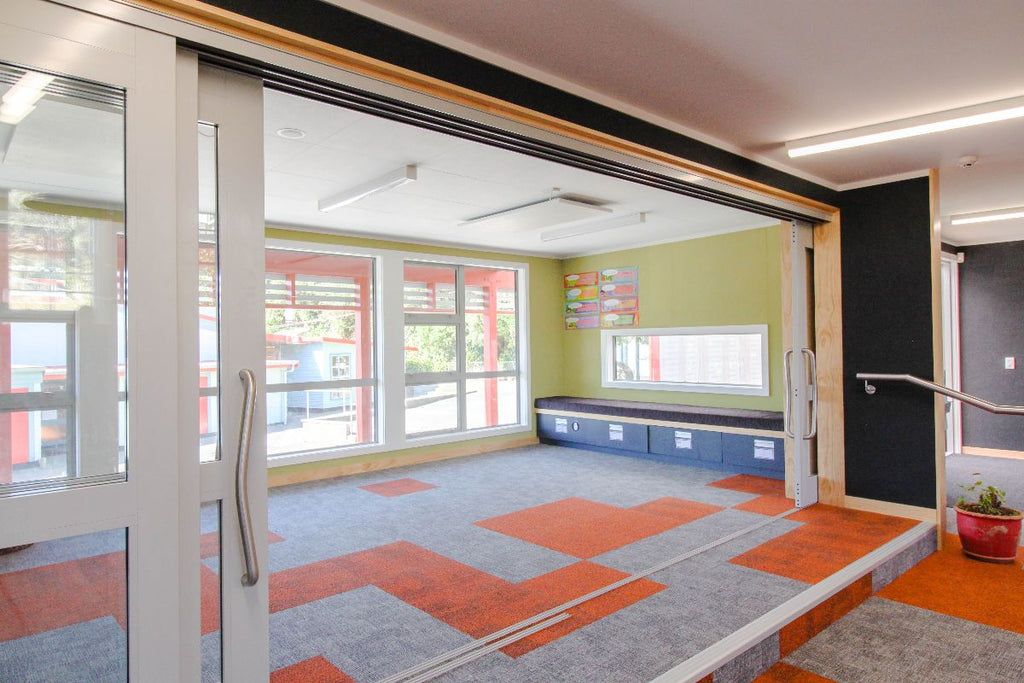

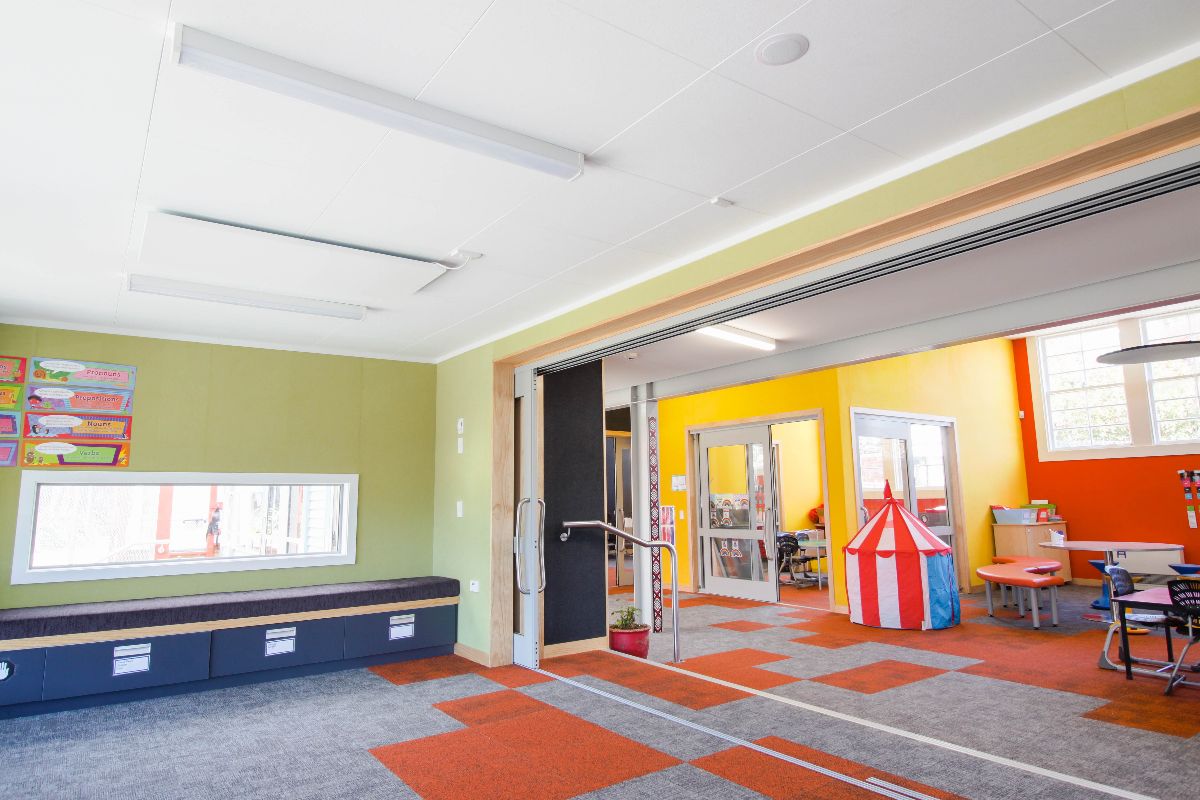

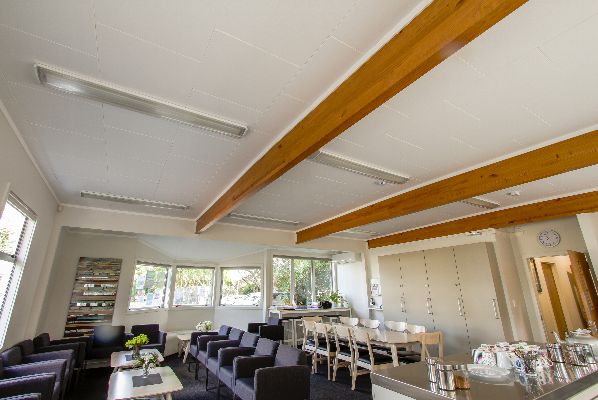

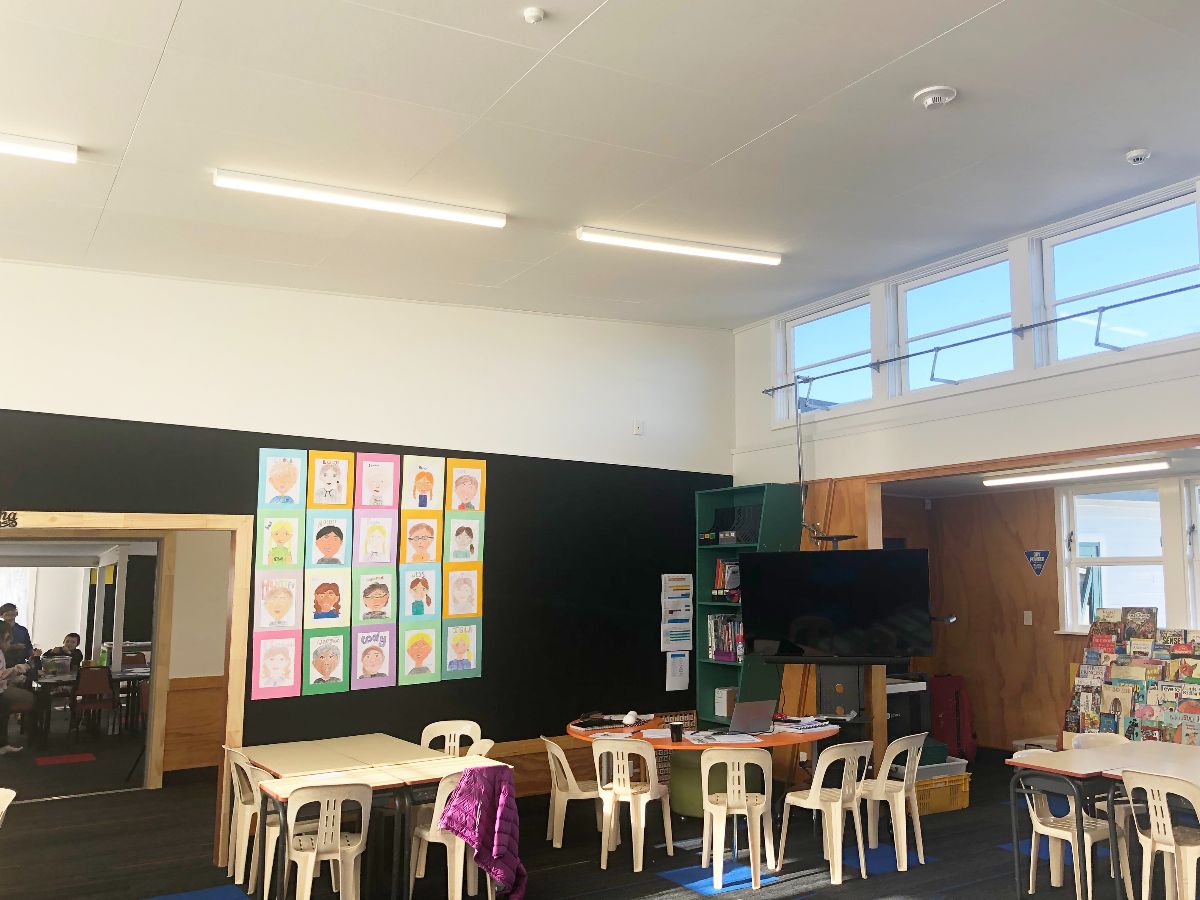

Phonic Direct Fix has been installed in various projects, including:

• Three Kings School, Auckland
• Hokowhitu School, Palmerston North
• Kapanui School, Palmerston North
• Brooklyn School, Wellington
• Cobham Court, Porirua
• Island Bay School, Wellington
• Titahi Bay, Van Asch School
• Winchester School, Palmerston North
• Naenae School, Lower Hutt
• West End School, Wellington
• Oxford Crescent School, Upper Hutt
