Phonic Impact

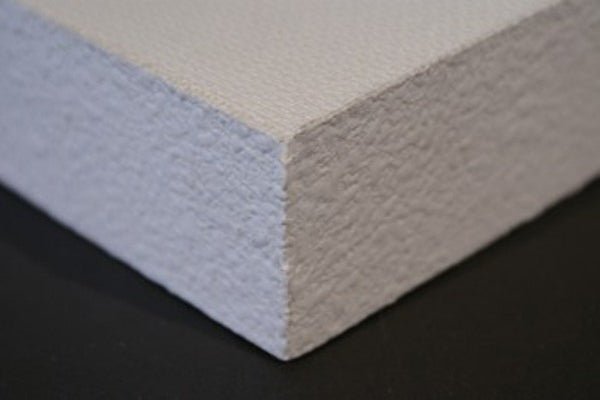

Phonic Impact Sports Panel is a high-performance fibreglass ceiling and wall panel with a strong fibreglass face, offering exceptional acoustic properties. This mid-range panel is designed to withstand knocks and ball impacts, making it ideal for gymnasiums, sports centres, community halls, and schools. Available in a selection of colours and customizable with ink-jet printed designs and logos.

Key Features

• Exceptional acoustic performance with a high Noise Reduction Coefficient (NRC) to reduce reverberation time.

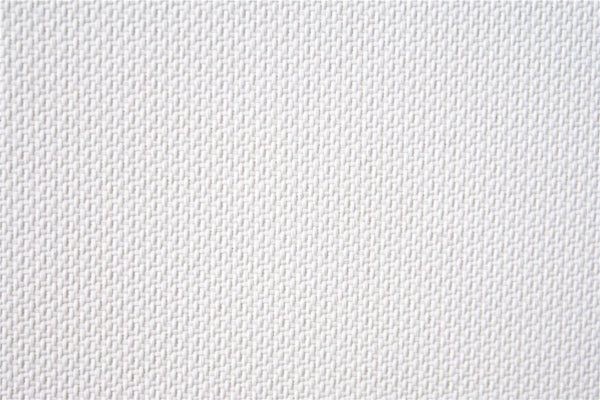

• Impact-resistant fibreglass face, perfect for high-activity areas like sports facilities and schools.
• Constructed from 90% dry felt resin-bonded glass-wool with a compact fibre arrangement for enhanced durability.
• Lightweight and user-friendly, achieving a density of 100kg/m³.
• Designed for standard T&R Interior System two-way grid suspension with optional Robo clips for extra security.
• Available in standard white and other colours on indent, including black, blue, grey, and caramel.

Specifications

• Absorption (ISO 534):
• NRC: 0.90 (ASTM C423 - 99)
• SAA: 0.96 (ASTM C423 - 99)
• αw: 0.95 (ISO 11654: 1997)
• Attenuation (ASTM E1414-11a): CAC 40
• Light Reflectance: 84%+ (white panel only)
• Density: 100kg/m³
• Weight: 40mm: 4kg/m²
• Fire Test: ISO 5660 Parts 1&2 Group 1-S
• Thermal Conductivity: ≥ 0.04 (kcal/mh°C)
• Estimated R-Value: R1 (m²k/w)
• Sizes: 40mm depth, square edge, available in [600x1200] [600x600] (other sizes available on request)
• Colours: White (standard), Black, Blue, Grey, Caramel (MOQ applies)

Warranty & Sustainability

• Warranty: 30-year lifetime system warranty, resistant to conditions up to 40°C and 99% relative humidity without visible sag when used with a T&R brand suspension system.
• Sustainability: Phonic Impact meets the Greenguard Emission Certificate Standard for Green Star rated projects.

For product warranties, completion documents, and test reports, please contact T&R Interior Systems: info@tris.co.nz

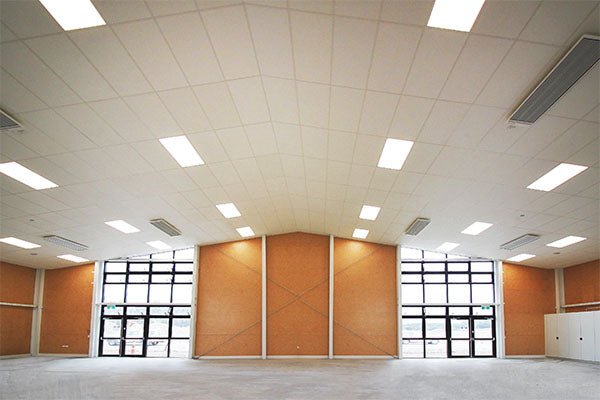

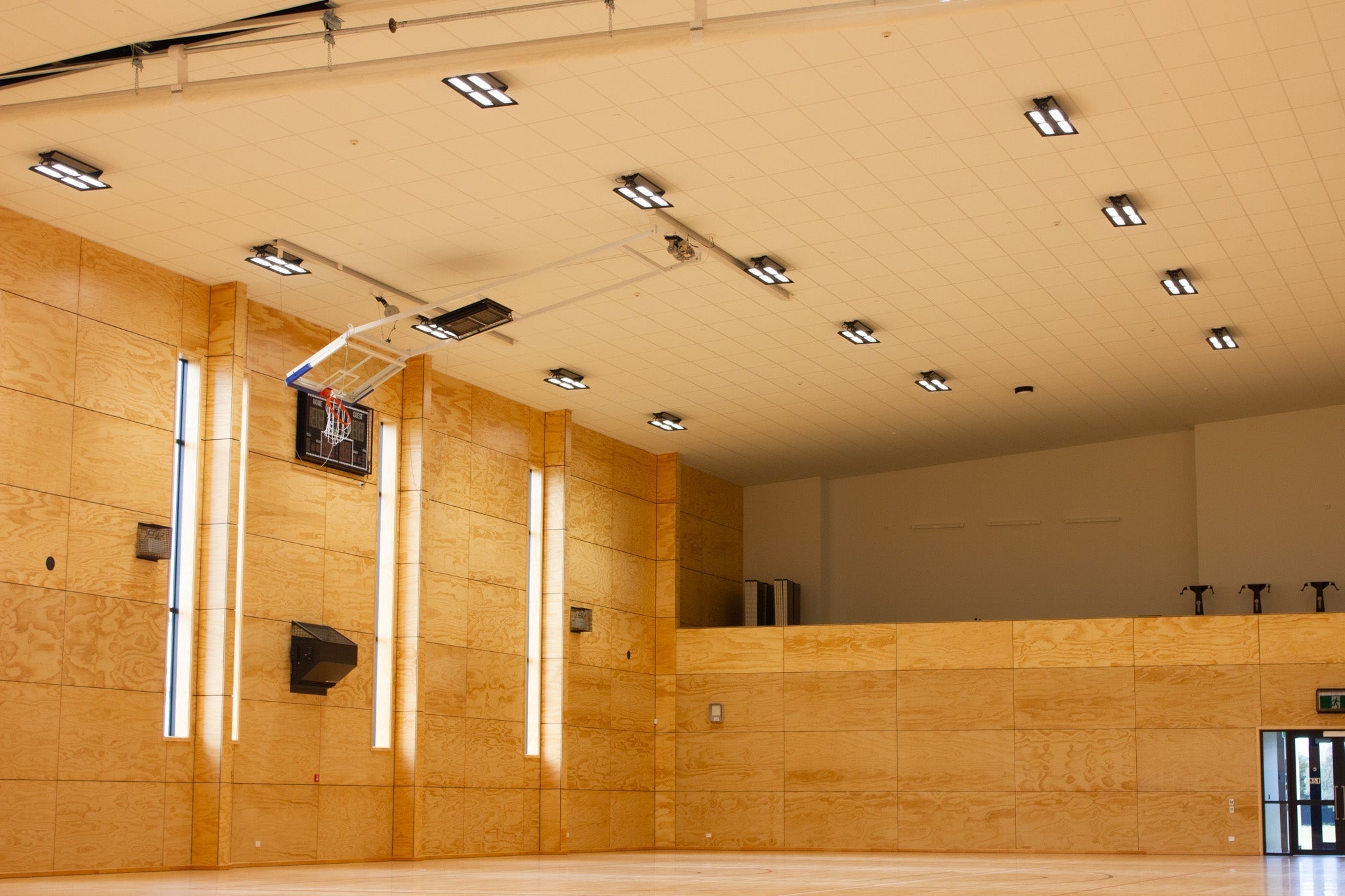

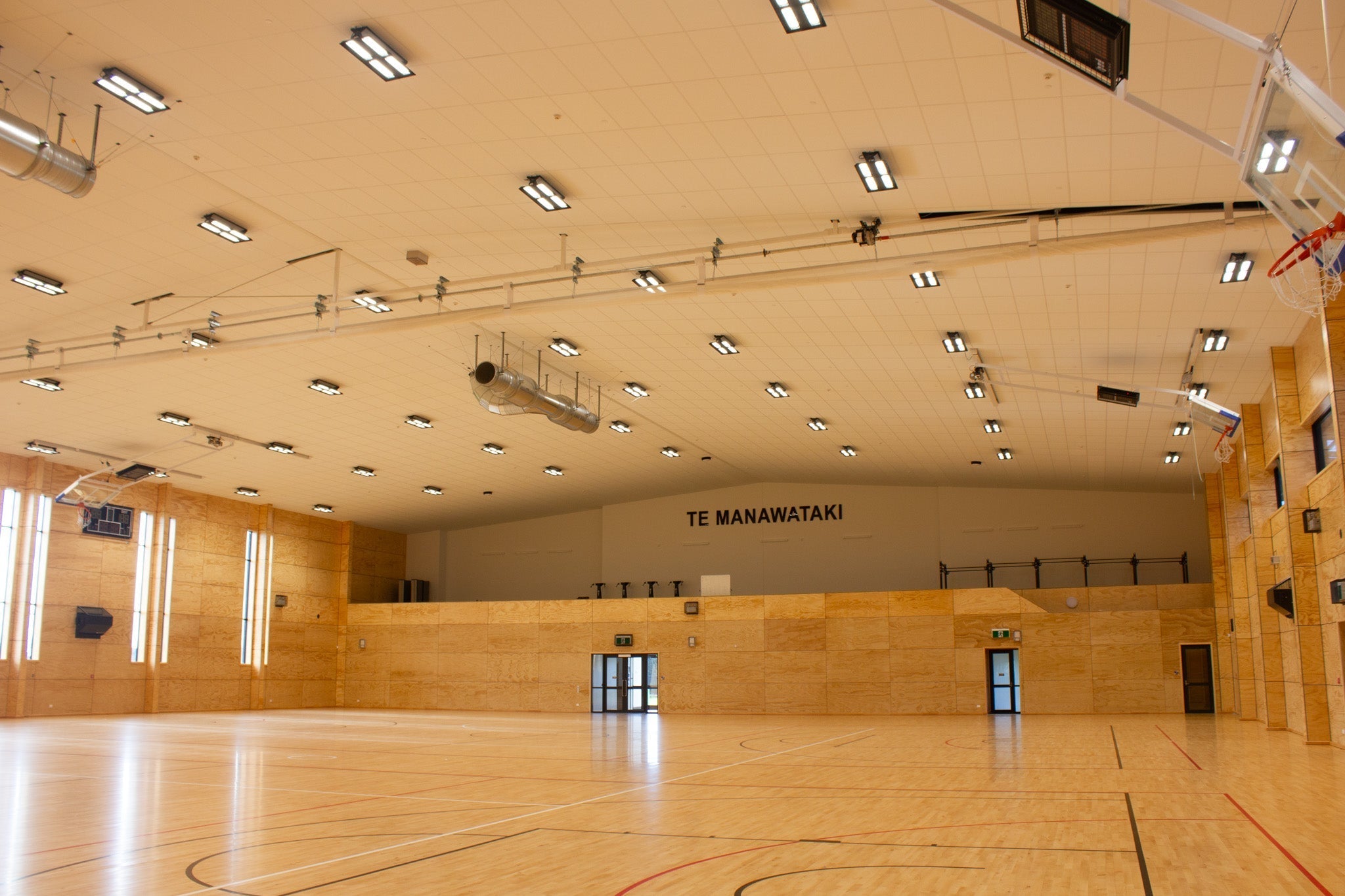

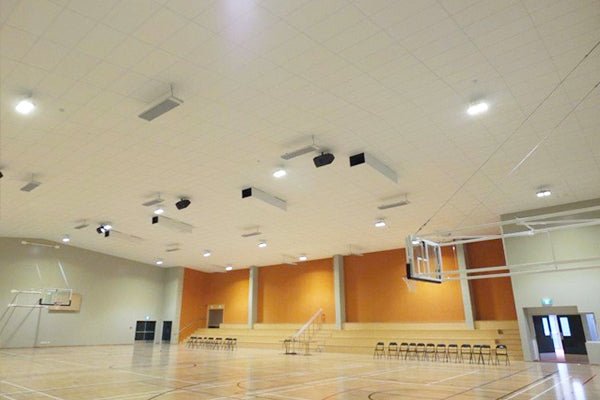

In Service History

• Middleton Grange, Christchurch
• Hutt Valley High Gym
• Christchurch Girl’s High Gym
• Wairarapa College Gym
• Bay of Islands Gym
• Western Heights School Gym
• Aotea College Workshops
• Hutt Valley High Tec Rooms

Click here to download Data Shee

Click here to download Installation Guide - Impact Tile Restraint

Click here to download Maintenance Guide
