Description
Zintra Textures offers subtle and engaging 3-dimensional panel designs. Each design incorporates aspects that reduce echoes by changing the angle of sound reflecting off the surface. It makes them ideal for noisy public spaces that need a little flair.
Zintra Acoustic Textures not only highlight the fantastic acoustic qualities of Zintra Acoustic Panel, but also the incredible fabrication capabilities Zintra has to offer. Zintra’s wide range of designs and colours slip easily into classic or modern settings.

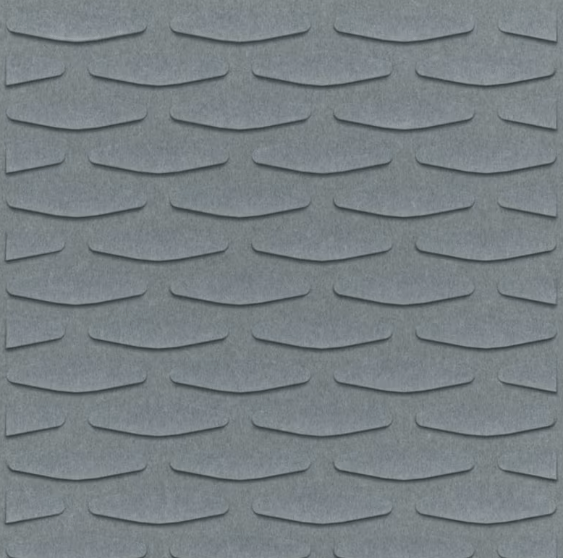

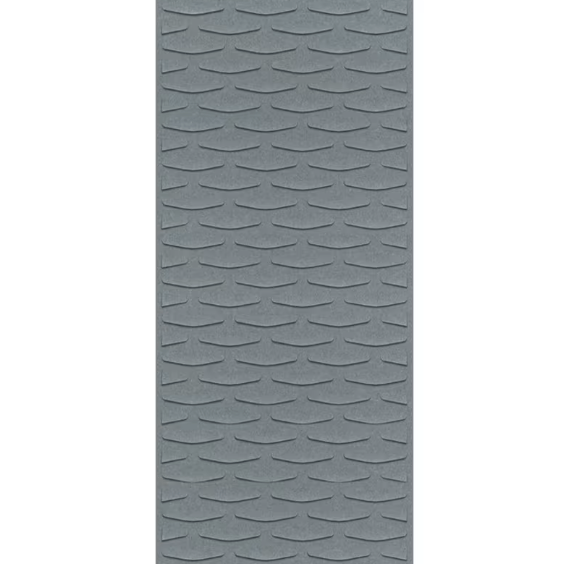

Echelle: The interplay of horizontal and vertical lines forms a captivating rhythm, evoking a sense of movement and depth.
The subtle 3-dimensional relief of these designs not only adds dimension to your surrounding but also provides excellent acoustics. Zintra Textures, slip seamlessly into classic or modern settings, adding a touch of innovation and sophistication to noisy public spaces.
Available in 15 designs:
Carre | Cercles | Corbe | Diamont | Droit | Echelle | Etoile | Hexagone | Nenuphar | Paume | Signe | Tessan | Tissage | Trappe | Vague
Not suitable as a freestanding product.
Enhance your space with the innovative style of Zintra Textures.
Dimensions
- Pattern Only: 1219mm (48”) x 2743mm (108”) x 12mm (1/2”)
- Pattern on Backer: 1219mm (48”) x 2743mm (108”) x 24mm (1”)
Composition
- Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester
- 12mm (1/2") - Density: 2.4 kg/m² (0.5 lb/ft²)
- 24mm (1") - Density: 3.6 kg/m² (0.75 lb/ft²)
Sustainability
- Zintra is made from 100% recyclable materials:
- 60% post-consumer recycled content from PET bottles
- 35% pre-consumer recycled content from PET chips
- 5% polylactic acid (PLA)
Fire Rating
- ASTM-E84 – Class A classification
- AS ISO 9705 – 2003 – Group 1 classification
- EN-13501 – B-s2-d0 classification
Warranty
Visit FAQ for more details.
Supplied As
Ships Flat Pack. Go to the Technical Documents and download the Installation Guide for more details.
Suggested Installation
Go to Technical Documents and download the Installation Guide for more details.
How to Specify
- Select Texture design
- Select Zintra Colour
Care Instructions
- Vacuum to remove dust.
- Dab Zintra with a damp clean cloth and mild solution of liquid detergent and warm water. Repeat using only clean water, then pat dry with a lint-free cloth.
- For difficult stains, use a solution of household bleach (10% bleach / 90% water). To remove the bleach, repeat using a clean, water-dampened cloth, then pat dry.
- Always test in an inconspicuous area first, and if you don't see the expected results, contact us.
Customisable
The Zintra Acoustic Solutions range is customisable to your project. Please get in touch with your local contact for details.
Additional Comments
NRC 0.45-0.90
